• Application Industry: Building Material Industry
• Project supporting boiler: DZL25-1.6-SCIII
• Project boiler medium: Steam

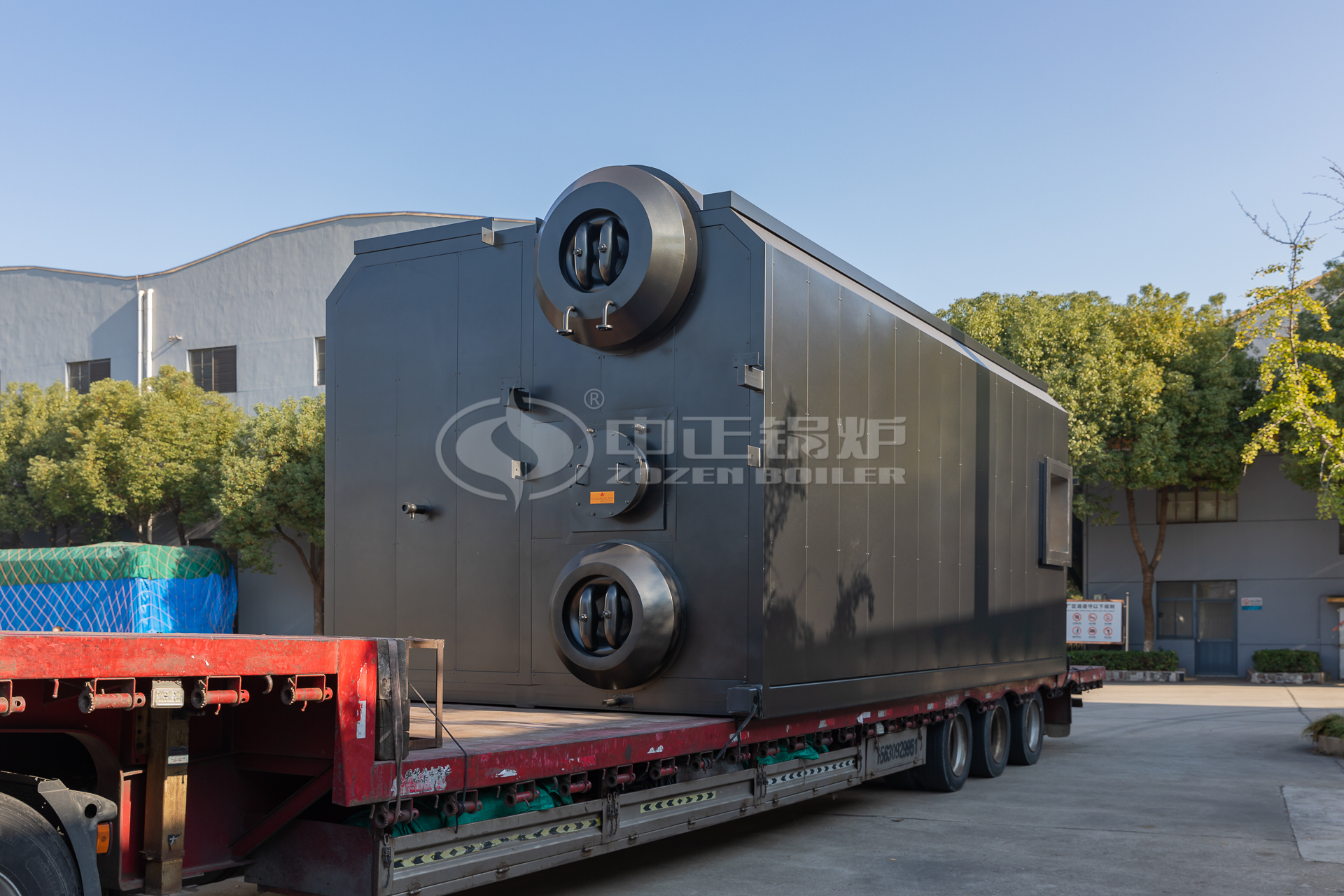

25 Tph Biomass-fired Horizontal Type Steam Boiler for Building Material Company

Case Introduction

Hubei Zhuogao New Material Technology Co., Ltd. is a company specializing in the production of prefabricated residential ALC panel walls. With the development of new projects, Hubei Zhuogao requires an efficient and environmentally friendly steam boiler for its ALC panel production line.

According to their requirements and the actual situation of the ALC panel production line, ZOZEN Boiler provided the 25 ton DZL series biomass-fired horizontal type steam boiler. This boiler is required to have high capacity, high thermal efficiency, and stable operational performance.

The design features of this boiler include:

Flexible ash blowing system: The rear convective heating surface is equipped with an ash blowing device, which can be adjusted according to different fuels without the need to shut down the boiler for ash cleaning.
Sufficient fuel combustion: The design of ZOZEN’s chain grate and independent air chamber ensures sufficient fuel combustion.
High thermal efficiency: The furnace adopts a densely arranged water-cooled wall tube structure, which has a large radiation area and a thermal efficiency of over 87.5%.
Easy operation and maintenance: The advanced control system enables highly automated operations such as fuel supply, ash removal, and slag discharge.

With the installation of the 25-ton DZL series biomass-fired horizontal type steam boiler from ZOZEN Boiler, Hubei Zhuogao New Material Technology Co., Ltd. can expect efficient and reliable steam supply for their ALC panel production line. This boiler’s design features contribute to its high performance, energy efficiency, and user-friendly operation, meeting the specific needs of the company.

Customer Feedback

We are pleased to that the boiler has met our thermal energy requirements and operates with stability and reliability. This has enabled our production line to run continuously and efficiently, resulting in improved productivity and product quality. The team at ZOZEN Boiler has demonstrated excellent professional knowledge and service throughout the entire process. We sincerely appreciate ZOZEN for providing us with such an outstanding biomass boiler. We are highly satisfied with our collaboration with ZOZEN.
