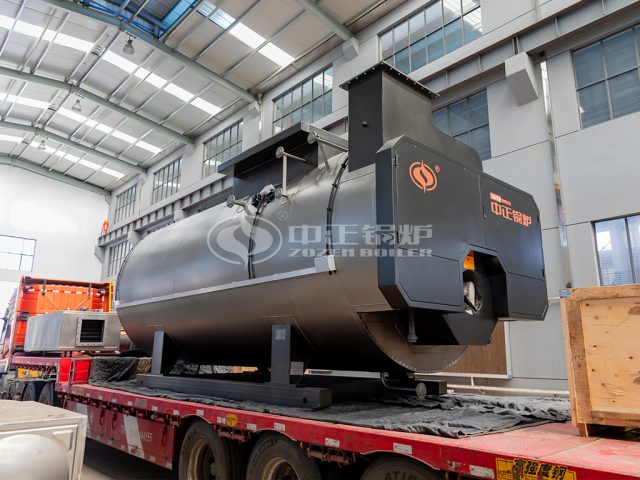

WNS Series Industrial Firetube Boiler
Product thermal capacity: 1 – 20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
WNS Series Industrial Firetube Boiler Introduction
WNS series industrial firetube boiler adopts advanced energy-saving technologies that not only reduce energy consumption but also effectively minimize environmental pollution, meeting high environmental standards. At the same time, it offers excellent stability and a long service life. The WNS series boilers are suitable for various industries, including textiles, food processing, chemicals, pharmaceuticals, and more, with models ranging from 1 ton to 20 tons, meeting diverse customer needs. The WNS series supports multiple fuel options, such as natural gas, diesel, and dual-fuel configurations, offering high fuel adaptability. In addition, the WNS series industrial firetube boiler is equipped with an advanced automation control system, providing excellent operational safety and automation, reducing the complexity of manual operation. It maintains stable performance even under high load and harsh working conditions, making it a reliable boiler solution for various industries.
WNS Series Industrial Firetube Boiler Advantages
High Efficiency and Energy Saving: The advanced firetube design, corrugated furnace and threaded smoke tubes improve heat transfer efficiency. The economizer and condenser reduce flue gas temperature, enhancing thermal efficiency, reducing fuel consumption, and saving operating costs.
Ease of Operation and Maintenance: The advanced control system enables unmanned operation.
Environmental Protection and Energy Efficiency: Equipped with low-nitrogen burners and advanced low-nitrogen combustion technology, NOx emissions are ≤30mg/Nm³.
Automated Control: The intelligent control system ensures fully automated operation, enhancing safety and reducing manual intervention.
WNS Series Industrial Firetube Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1 | 184 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1 | 184 | 7 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 7 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1 | 184 | 9 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 9 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1 | 184 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 15 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 15 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 18 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 18 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 25 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 25 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 40 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 40 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 52 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 52 | 8.55×3.90×4.15 |
