ZOZEN 15 Ton Biomass Steam Boiler for Chemical Industry

  • Application Industry: Chemical Industry
  • Project supporting boiler: SZL15-1.25-SCIII
  • Project boiler medium: Steam

ZOZEN 15 Ton Biomass Steam BoilerCase Introduction

Pamica is a manufacturing enterprise that integrates research and development, production, and sales of mica insulation materials, which are widely used in the production of high-standard electrical insulation and heat-resistant materials.

The company is currently building a new project for mica board and new energy security materials, with a total investment of 100 million RMB. According to the project plan, the original 10 tons/hour biomass fuel steam boiler and 12 tons/hour biomass fuel thermal oil heater will be replaced with a 15 tons/hour biomass steam boiler and a 15 tons/hour biomass thermal oil boiler. The 15-ton biomass steam boiler is provided by ZOZEN Boiler.

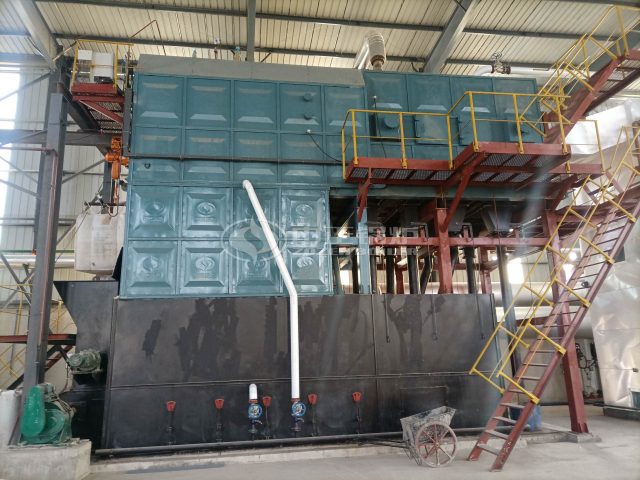

The 15-ton SZL series biomass steam boiler provided by ZOZEN Boiler mainly supplies heat for processes such as drying, curing, and hot pressing in the project. The boiler consists of two main parts: the heat exchange surface and the chain grate. The furnace part has been raised to ensure complete combustion of the fuel and provide sufficient space. Considering the high ash content of biomass fuel, the convection tube bundle area of the boiler is equipped with multiple online soot blowers, which are automatically activated at intervals to avoid frequent shutdowns for ash cleaning, ensuring continuous heat supply for the production line.

Customer Feedback

We are very satisfied with the 15-ton SZL series biomass steam boiler provided by ZOZEN Boiler. The design of the boiler fully considers our specific production needs, especially in the application of high-ash biomass fuels. The online soot blower system effectively avoids issues with shutdowns for ash cleaning, ensuring the continuous operation of the production line. The boiler’s high efficiency and stability provide a reliable heat source for our production process, ensuring smooth operation of processes like drying, curing, and hot pressing. ZOZEN Boiler has also excelled in technical support and after-sales service, fully meeting our needs.
