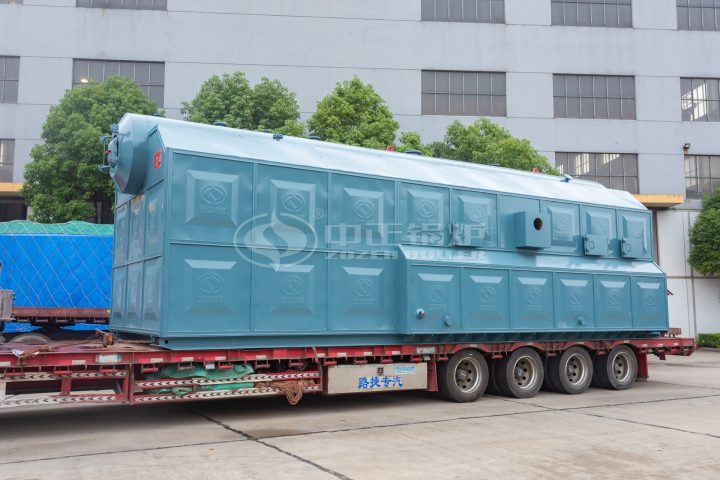

DZL Series Biomass Fired Stoker Grate Boiler

ZOZEN Stoker Grate Boiler

Product Thermal Capacity: 15-40 t/h

Working Pressure: 1.25 MPa / 1.6 MPa / 2.5 MPa

Available Fuel: Biomass pellets, rice husks, wood chips, palm shells, sawdust, etc.

Available Industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, pharmaceutical, building materials, brewing, rubber, hospitals.

DZL Series Biomass Fired Stoker Grate Boiler Introduction

The DZL series biomass-fired stoker grate boiler is specifically designed for biomass fuels and features a stoker grate as a key component, delivering efficient and reliable performance. Biomass fuel is fed onto the stoker grate, which continuously moves to push the fuel into the furnace. Inside the furnace, the fuel undergoes drying, combustion, and ash transformation under the action of the stoker grate. The heat generated from the combustion is transferred to water through the boiler’s tubes, producing steam for industrial processes or heating requirements.

DZL Series Biomass Fired Stoker Grate Boiler Advantages

Efficient combustion: The stoker grate technology ensures the complete combustion of biomass fuel inside the furnace. With precise fuel supply and control of the stoker grate movement, the fuel can achieve uniform combustion, improving combustion efficiency and maximizing the utilization of biomass energy.

Flexible and reliable: The DZL series biomass-fired stoker grate boiler is suitable for various biomass fuels such as wood chips, sawdust, and straw. It exhibits high adaptability and reliability, enabling stable operation and meeting the combustion requirements of different users.

Automated control: The boiler is equipped with an advanced automation control system that enables automate fuel supply, ash removal, and slag discharge. This provides convenient operation and stable performance, reducing manual intervention and operational costs.

Environmentally friendly with low emissions: Advanced combustion technology and flue gas purification systems effectively control the emissions of nitrogen oxides and particulate matter. Biomass fuel itself has low carbon emissions characteristics, making the DZL series biomass-fired stoker grate boiler an environmentally friendly choice.

DZL Series Biomass Fired Stoker Grate Boiler Specification

Model Rated steam capacity (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Feed water temperature (℃) Maximum transport dimension (m)
DZL15-1.25-SCⅢ 15 1.25 194 104 10.10×3.15×3.60
8.50×3.42×3.00
DZL15-1.6-SCⅢ 15 1.6 204 104 10.10×3.15×3.60
8.50×3.42×3.00
DZL15-2.5-SCⅢ 15 2.5 225 104 10.10×3.15×3.60
8.50×3.42×3.00
DZL20-1.25-SCⅢ 20 1.25 194 104 10.70×3.90×3.60
9.30×3.81×3.00
DZL20-1.6-SCⅢ 20 1.6 204 104 10.70×3.90×3.60
9.30×3.81×3.00
DZL20-2.5-SCⅢ 20 2.5 225 104 10.70×3.90×3.60
9.30×3.81×3.00
DZL25-1.25-SCⅢ 25 1.25 194 104 10.70×3.90×3.60
9.30×3.81×3.00
DZL25-1.6-SCⅢ 25 1.6 204 104 10.70×3.90×3.60
9.30×3.81×3.00
DZL25-2.5-SCⅢ 25 2.5 225 104 10.70×3.90×3.60
9.30×3.81×3.00
DZL30-1.25-SCⅢ 30 1.25 194 104 10.00×3.36×3.60
DZL30-1.6-SCⅢ 30 1.6 204 104 10.00×3.36×3.60
DZL30-2.5-SCⅢ 30 2.5 225 104 10.00×3.36×3.60
DZL35-1.25-SCⅢ 35 1.25 194 104 10.00×4.10×3.80
DZL35-1.6-SCⅢ 35 1.6 204 104 10.00×4.10×3.80
DZL35-2.5-SCⅢ 35 2.5 225 104 10.00×4.10×3.80
DZL40-1.25-SCⅢ 40 1.25 194 104 10.00×4.44×4.30
DZL40-1.6-SCⅢ 40 1.6 204 104 10.00×4.44×4.30
DZL40-2.5-SCⅢ 40 2.5 225 104 10.00×4.44×4.30

Leave a Reply

Name *
Country
Email *
Tel
Boiler type:
Fuel:
Pressure :
Message:

Related Cases

6 Tph Chain Grate Biomass Steam Boiler for Papermaking Industry

Application Industry: Papermaking Industry Project supporting boiler: SZL6-1.6-SS Project boiler...

SZS Series Gas Superheated Steam Boilers Are Used in Electric Power Companies

With the increasing development of science and technology and the continuous improvement of socia...

ZOZEN Reliable 15 Tph Reciprocating Grate Biomass Steam Boiler for Central Heating Industry

Application Industry: Central Heating Industry Project supporting boiler: DZW15-1.6-SS Project b...

40 TPH Biomass Steam Boiler for Rubber Industry in Thailand

Application Industry: Rubber Industry Project supporting boiler: DZL40-2.5-T Project boiler medi...

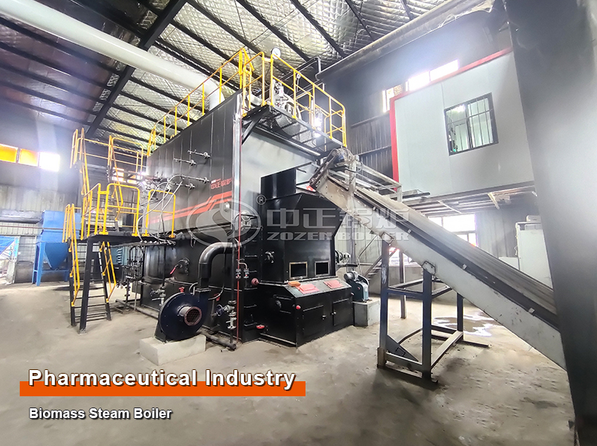

10 Tph Biomass Steam Boiler for Pharmaceutical Industry
