In the realm of industrial thermal energy solutions, the thermal oil boiler system has emerged as a critical technology for applications demanding precise temperature control and high-efficiency heat transfer. Unlike traditional steam systems, this system utilizes thermally stable synthetic or mineral-based oils as the heat transfer medium, enabling operation at elevated temperatures without the need for high-pressure containment. The core principle revolves around circulating heated oil through a closed-loop network, where it absorbs heat from combustion gases in the heating furnace and transfers it to process equipment via heat exchangers. This design eliminates the risks associated with water-phase transitions, offering enhanced safety and operational stability. Central to its functionality are components such as the coil-type heater, expansion tank, circulation pump, and temperature control valves, which collectively ensure seamless heat distribution. As industries increasingly prioritize energy efficiency and environmental compliance, the thermal oil boiler system has become indispensable in sectors ranging from chemical processing to food manufacturing. Among the pioneers advancing this technology is ZOZEN BOILER, whose YQL series exemplifies innovation in high-temperature thermal systems.

ZOZEN’s YQL Series: Engineering Excellence in Thermal Oil Boiler Systems

ZOZEN YQL series boilers combine advanced combustion dynamics with adaptive engineering to meet the stringent requirements of modern industry. The system adopts a two-pass round coil structure, with a reduced coil at the end of the coil, which effectively protects the furnace wall at the end of the boiler. It is equipped with advanced combustion devices and the boiler is fully automated. The boiler is shipped as a whole and can be put into operation after being put into place on the construction site by simply connecting gas (oil) and electricity. The integration of low nitrogen oxide (NOx) burners further improves environmental performance, with emissions below 30 mg/Nm3, meeting strict global air quality standards.

A defining feature of the YQL series is its intelligent temperature control system, which employs real-time sensors and programmable logic controllers (PLCs) to maintain precise thermal regulation. This capability is vital for processes requiring consistent heat input, such as polymerization in chemical plants or drying operations in food production. The system’s self-circulating oil flow design ensures even heat distribution across the coil network, preventing localized overheating and degradation of the heat transfer fluid. Additionally, the use of high-grade insulation materials and an optimized flue gas path contributes to a thermal efficiency exceeding 92%, significantly outperforming conventional thermal oil systems.

Safety and reliability are embedded into every aspect of the YQL series’ architecture. The dual-circuit pressure monitoring system continuously tracks oil flow and pressure fluctuations, triggering automated adjustments to prevent operational disruptions. Redundant over-temperature protection devices and emergency shutdown protocols ensure compliance with international safety certifications, including ASME and ISO standards. These features collectively position the YQL series as a robust solution for industries seeking to balance performance with risk mitigation.

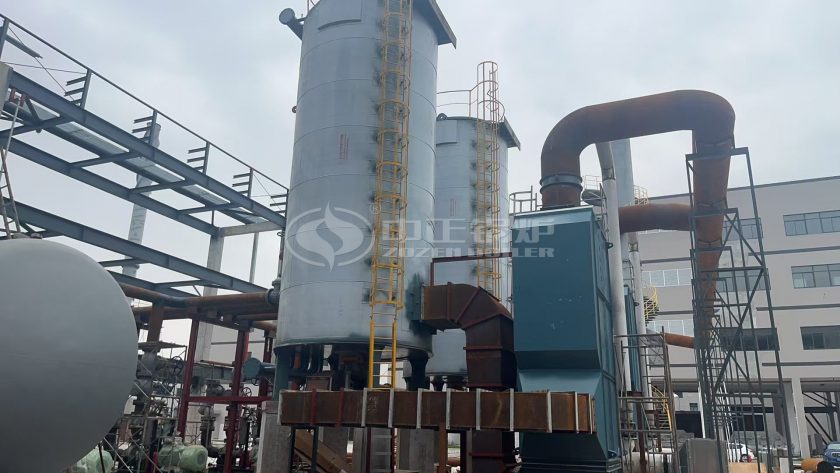

ZOZEN YQL-9400Y(Q) thermal oil boiler

Case Study: Elevating Efficiency for a Precision Chemical Manufacturer

A leading fine chemical enterprise specializing in specialty solvents and additives faced escalating energy costs due to its reliance on an outdated thermal oil boiler system. The company’s production processes—including esterification, distillation, and solvent recovery—required stable thermal energy at temperatures exceeding 280°C. However, its existing system struggled to maintain consistent heat output, leading to batch inconsistencies and increased fuel consumption. Seeking a solution that aligned with its sustainability goals, the company partnered with ZOZEN BOILER to install an 8 million kcal/h YQL series gas-fired thermal oil boiler.

The two-pass coil structure of the YQL series played an important role in meeting the challenge. After the fuel is ignited by the burner, the flame formed fills the circular coil and transmits radiant heat through the coil wall. This is the first pass. The high-temperature flue gas generated by the combustion converges at the rear furnace door and turns to enter the second pass, that is, the convection tube bundle area. After convection heat exchange, the flue gas temperature gradually decreases, and then enters the chimney through the rear heating surface and is discharged to the atmosphere. The integration of low-NOx combustion technology further ensures compliance with regional emission standards, reducing NOx emissions to below 30 mg/Nm3 – a key factor in obtaining regulatory approval.

While the boiler is currently in the final installation phase, preliminary assessments indicate substantial economic and environmental benefits. The high thermal efficiency of the system reduces consumption significantly each year, resulting in cost savings.Additionally, the intelligent control interface allows operators to monitor combustion parameters and adjust settings remotely, minimizing manual intervention and enhancing process consistency. Once fully operational, the YQL series thermal oil boiler will provide the plant with a reliable heat source, supporting its transition to low-carbon, digitally integrated production.

Design and Maintenance: Keys to Long-Term Performance

The success of any thermal oil boiler system hinges on meticulous design and proactive maintenance. From the selection of corrosion-resistant alloys for coil construction to the implementation of advanced combustion controls, each component must align with the system’s operational demands. Key considerations include material compatibility with heat transfer fluids, thermal expansion management, and redundancy in safety mechanisms. Regular maintenance practices—such as oil analysis, coil cleaning, and burner calibration—are equally critical to sustaining efficiency and preventing premature wear.

ZOZEN BOILER reinforces the value of its thermal oil boiler system through a comprehensive after-sales support framework. A global network of service engineers provides on-site commissioning, performance optimization, and preventive maintenance, ensuring clients maximize their investment’s lifespan. Remote diagnostics and real-time troubleshooting further enhance operational continuity, allowing potential issues to be addressed before they escalate. This commitment to customer-centric service underscores ZOZEN’s role as a partner in long-term industrial success.

Powering Progress with ZOZEN’s Thermal Oil Boiler System

The thermal oil boiler system represents more than just a technical innovation—it is a strategic enabler of industrial efficiency and sustainability. By combining advanced engineering with adaptive design, ZOZEN BOILER’s YQL series demonstrates how precision heating can drive productivity while meeting environmental imperatives. For businesses seeking to optimize thermal energy use, investing in a high-performance system is not merely an operational upgrade but a pathway to future resilience.

To discover how ZOZEN’s thermal oil boiler system can transform your energy strategy, contant us. Explore tailored solutions engineered to turn your heating challenges into opportunities—one cycle at a time.
