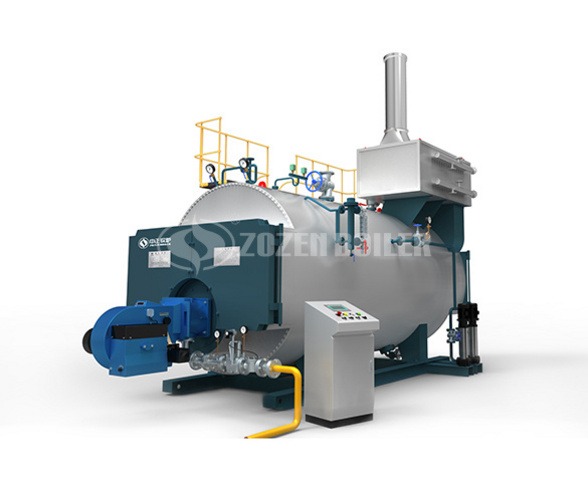

WNS Series Gas/Oil Fired Steam Boiler

WNS Series Gas/Oil Fired Steam Boiler

Product thermal capacity: 1-20 t/h

Working pressure: 0.7-2 Mpa

Available fuel: Nature gas, coke oven gas, biogas, methanol, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.

Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

WNS Series Steam Boiler Introduction

WNS series horizontal triple return boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.



WNS Series Oil/Gas Fired Boiler Advantage

  • The key part such as material cutting, rolling, drilling are proceeded by advanced CNC machining process to reduce the assemble stress and extend boiler working lifetime.
  • Smoke tube and tube sheet connection is expanded first to eliminate the gap between them, then adopt automatic argon arc welding to relief the stress and expand boilers working life.
  • WNS series steam boiler adopt fin tube us ND steel or stainless-steel material which avoid low temperature corrosion.
  • High quality aluminum silicate fiber is used with fire clay insulation, to control the boiler body temperature below 45 degree to control heat lost.
  • Condenser is added to reuse the waste heat of the exhausted smoke to increase feeding water’s temperature and reduce emission temperature, which can increase the thermal efficiency above 98% and save operating cost.



WNS Series Steam Boiler Specification

Model Rated steam capacity (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Feed water temperature (℃) Maximum transport weight (t) Maximum transport dimension (m)
WNS1-0.7-Q(Y) 1 0.7 170 20 4.5 3.25×1.80×2.00
WNS1-1.0-Q(Y) 1 1.0 184 20 4.5 3.25×1.80×2.00
WNS1.5-1.0-Q(Y) 1.5 1.0 184 20 7.0 3.65×2.05×2.45
WNS1.5-1.25-Q(Y) 1.5 1.25 194 20 7.0 3.65×2.05×2.45
WNS2-1.0-Q(Y) 2 1.0 184 20 9.0 4.60×2.20×2.60
WNS2-1.25-Q(Y) 2 1.25 194 20 9.0 4.60×2.20×2.60
WNS3-1.0-Q(Y) 3 1.0 184 20 11.5 5.35×2.40×2.80
WNS3-1.25-Q(Y) 3 1.25 194 20 11.5 5.35×2.40×2.80
WNS4-1.25-Q(Y) 4 1.25 194 20 15.0 5.00×2.60×2.95
WNS4-1.6-Q(Y) 4 1.6 204 20 15.0 5.00×2.60×2.95
WNS5-1.25-Q(Y) 5 1.25 194 20 18.0 5.55×2.658×3.20
WNS5-1.6-Q(Y) 5 1.6 204 20 18.0 5.55×2.658×3.20
WNS6-1.25-Q(Y) 6 1.25 194 20 19.5 5.93×2.80×3.20
WNS6-1.6-Q(Y) 6 1.6 204 20 19.5 5.93×2.80×3.20
WNS8-1.25-Q(Y) 8 1.25 194 20 25.0 7.00×2.80×3.25
WNS8-1.6-Q(Y) 8 1.6 204 20 25.0 7.00×2.80×3.25
WNS10-1.25-Q(Y) 10 1.25 194 104 27.5 7.65×2.80×3.25
WNS10-1.6-Q(Y) 10 1.6 204 104 27.5 7.65×2.80×3.25
WNS15-1.25-Q(Y) 15 1.25 194 104 40.0 7.95×3.50×3.75
WNS15-1.6-Q(Y) 15 1.6 204 104 40.0 7.95×3.50×3.75
WNS20-1.25-Q(Y) 20 1.25 194 104 52.0 8.55×3.90×4.15
WNS20-1.6-Q(Y) 20 1.6 204 104 52.0 8.55×3.90×4.15
