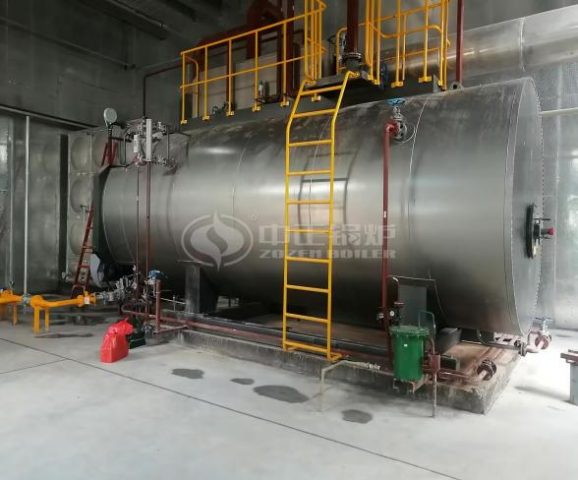

WNS Series Packaged Boiler
Product thermal capacity: 1 – 20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
WNS Series Packaged Boiler Introduction
The WNS series packaged boiler is a horizontal three-pass boiler. These boilers feature a wet-back, corrugated furnace structure with a symmetrical arrangement of heating surfaces, effectively reducing thermal stress and improving the safety and service life of the boiler. The design of the WNS series boilers takes into account environmental requirements, such as the use of full-flow condensing heat transfer technology, which absorbs both the sensible and latent heat of water vapor in the flue gas. This not only improves thermal efficiency but also reduces emissions of harmful substances. The packaged boiler is equipped with a multi-level protection system, ensuring safe and reliable operation. Furthermore, thanks to its compact structure, small footprint, and lower water quality requirements, the packaged boiler is more convenient to maintain and operate.
WNS Series Packaged Boiler Advantages
High Efficiency and Energy Saving: The WNS series packaged boiler adopts an advanced combustion system and optimized flue gas passage design to achieve efficient heat transfer and combustion efficiency. This significantly reduces energy consumption and lowers operational costs.
Safety and Reliability: This series of boilers is equipped with multiple safety protection devices, including overheating protection, overpressure protection, and combustion process monitoring. These features ensure safe and stable operation, safeguarding both equipment and personnel.
Compact and Convenient: The WNS series packaged boiler has a compact design and small size, making it ideal for installations with limited space. In addition, it has relatively low water quality requirements, simplifying both maintenance and daily operation.
User-Friendly Operation: The series comes equipped with an intelligent control system featuring an intuitive interface and easy-to-use functions. This enables automated operation and remote monitoring, enhancing operational efficiency and convenience.
WNS Series Packaged Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1 | 184 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1 | 184 | 7 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 7 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1 | 184 | 9 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 9 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1 | 184 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 15 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 15 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 18 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 18 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 25 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 25 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 40 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 40 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 52 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 52 | 8.55×3.90×4.15 |
