WNS Series 6 Ton LPG Steam Boiler
Product thermal capacity: 1 – 20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

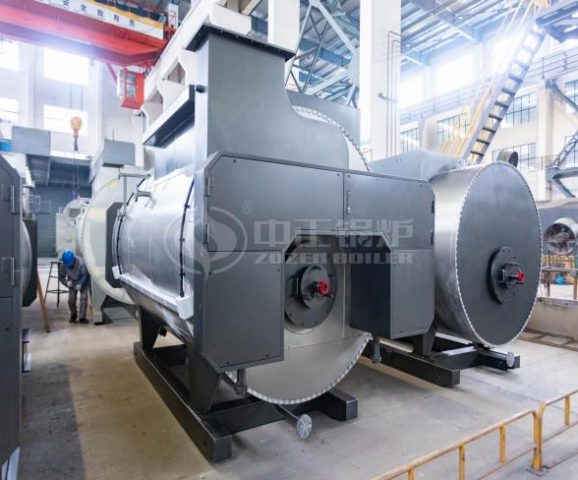

WNS Series 6 Ton LPG Steam Boiler Introduction
The WNS series 6 ton lpg steam boiler uses liquefied petroleum gas as fuel, offering advantages such as complete combustion and high thermal efficiency, which can meet the steam quantity and quality requirements of various industries. The WNS series 6 ton lpg steam boiler features a horizontal structure with a compact design, making it easy to install and maintain. The boiler’s combustion system is equipped with an advanced burner, ensuring efficient combustion of lpg fuel, reducing harmful gas emissions, and meeting both domestic and international environmental standards. The WNS series 6 ton lpg steam boiler provides stable steam output and is equipped with an intelligent control system, allowing for easy operation and real-time monitoring of the boiler’s operating status to ensure safe and stable operation. Additionally, ZOZEN Boilers provides comprehensive after-sales services to ensure long-term stable use for customers.
WNS Series 6 Ton LPG Steam Boiler Advantages
High Efficiency and Energy Saving: The WNS series 6 ton lpg steam boiler uses advanced heat exchange technology to optimize the combustion process, maximizing thermal energy utilization and significantly reducing energy consumption, demonstrating excellent energy-saving performance.
Superior Environmental Performance: The boiler uses lpg as fuel, ensuring complete combustion with minimal harmful gas emissions, complying with strict environmental standards, helping enterprises reduce emissions, and adhering to national and regional environmental policies.
Intelligent Control System: Equipped with an advanced intelligent control system, the boiler monitors its operational status in real-time, automatically adjusting combustion and pressure controls to ensure efficient, safe, and stable operation, while simplifying the operation process and improving user convenience.
Reliable Safety: The WNS series 6 ton lpg steam boiler incorporates multiple safety protection features, such as automatic protections for overheating, overpressure, and low water levels, effectively preventing boiler malfunctions and ensuring long-term stable operation, safeguarding production safety.
WNS Series 6 Ton LPG Steam Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1 | 184 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1 | 184 | 7 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 7 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1 | 184 | 9 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 9 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1 | 184 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 15 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 15 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 18 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 18 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 25 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 25 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 40 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 40 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 52 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 52 | 8.55×3.90×4.15 |
