A 4 ton boiler is widely used in medium-sized industrial facilities that require reliable and continuous steam supply without excessive installation space or oversized capacity. Industries such as pharmaceuticals, food processing, textiles, chemicals, and light manufacturing often select a 4 ton boiler because it provides sufficient steam output to support daily production while maintaining manageable fuel consumption and operational costs. The balance between capacity and efficiency makes this boiler size particularly suitable for enterprises upgrading their energy systems or expanding production lines.

When choosing a 4 ton boiler, enterprises focus on structural reliability, combustion efficiency, heat transfer performance, and environmental adaptability. A well-designed boiler should ensure stable pressure output, efficient fuel utilization, and long-term operational safety. ZOZEN BOILER has developed mature solutions in this capacity range, especially in biomass-fired steam boilers, offering dependable equipment designed for durability and energy efficiency. Through continuous technological innovation and manufacturing refinement, ZOZEN provides 4 ton boiler systems that meet modern industrial standards.

Technical Features of ZOZEN DZL Single Drum Biomass Steam Boiler

The ZOZEN DZL series single drum biomass steam boiler represents a reliable solution in the 4 ton boiler segment. The DZL boiler adopts a horizontal three-pass water and fire tube chain grate structure, integrating the advantages of both water-tube and fire-tube designs. This hybrid structure enhances heat transfer efficiency while maintaining structural stability during continuous operation.

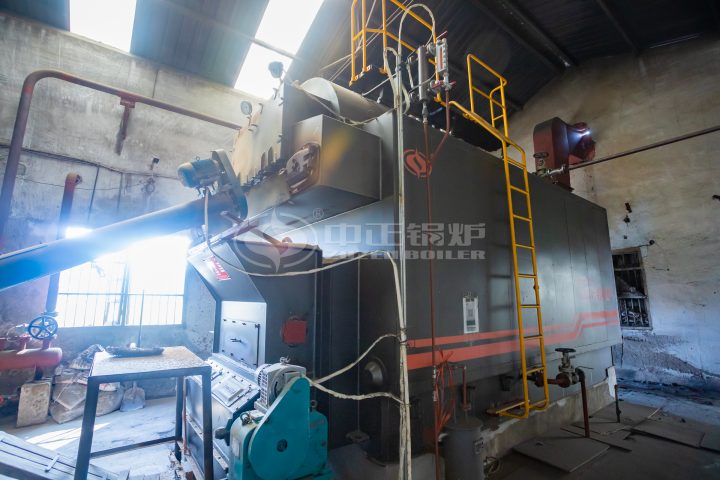

ZOZEN 4 ton DZL biomass-fired steam boiler

One of the notable technical characteristics of the DZL 4 ton boiler is its single drum arrangement combined with optimized circulation. The drum ensures effective steam-water separation, delivering stable and high-quality steam suitable for industrial processes that require consistent pressure and temperature. The furnace section is designed to promote complete combustion of biomass fuels through a chain grate feeding system. The steady movement of the grate enables uniform fuel distribution, progressive drying, ignition, and burnout.

ZOZEN was among the earlier manufacturers to apply an arched tube sheet and threaded smoke tube structure in this type of 4 ton boiler. The arched tube sheet design enhances structural strength and effectively addresses the issue of rear tube sheet cracking that may occur under long-term thermal stress. Threaded smoke tubes increase the heat exchange coefficient by intensifying flue gas turbulence, improving overall thermal efficiency and enhancing durability.

The three-pass flue gas flow structure ensures that high-temperature gases transfer heat efficiently before discharge. With optimized heat exchange surfaces and stable combustion, the thermal efficiency of the DZL biomass 4 ton boiler reaches above 86%, supporting effective fuel utilization and reduced energy consumption. The water-cooled walls within the furnace absorb radiant heat efficiently, expanding the heating surface area and improving combustion stability.

The boiler’s compact structure makes installation convenient, particularly for facilities undergoing boiler room renovation or capacity upgrades. Its horizontal layout simplifies maintenance and inspection procedures, while the chain grate system supports continuous operation suitable for industrial production environments. Through the combination of structural innovation, reliable combustion, and enhanced heat transfer technology, the DZL series offers a dependable 4 ton boiler solution for biomass-fired steam generation.

DZL4-1.25-T 4 Ton Boiler for a Modern Pharmaceutical Enterprise

A modern pharmaceutical enterprise integrating drug production, sales, and research and development recently undertook a boiler room renovation project. As the company continued to increase investment in technological innovation and research capabilities, it also recognized the importance of upgrading its steam supply system to ensure production stability and future expansion potential.

During the selection process, the enterprise learned that ZOZEN BOILER was among the first domestic manufacturers to adopt arched tube sheet and threaded smoke tube structures to enhance heat conduction and effectively resolve the issue of rear tube sheet cracking. This technological strength, combined with manufacturing capability and industry reputation, led the pharmaceutical company to decisively select the “ZOZEN” brand 4 ton boiler model DZL4-1.25-T.

The chosen DZL4-1.25-T is a horizontal three-pass water and fire tube chain grate biomass steam boiler with a compact and practical structure. As a 4 ton boiler, it provides sufficient steam output to meet the pharmaceutical production requirements, including sterilization, heating, and process temperature control. The three-pass design ensures that flue gas heat is fully utilized before discharge, improving overall thermal efficiency.

The chain grate system guarantees stable fuel feeding and combustion, contributing to consistent steam pressure and temperature. In pharmaceutical production, where precise process control is essential, the stable operation of the 4 ton boiler supports product quality and regulatory compliance. The arched tube sheet structure enhances mechanical strength and reduces the risk of deformation under long-term operation, while the threaded smoke tubes increase heat transfer efficiency.

Following the completion of the boiler room renovation, the new 4 ton boiler was successfully integrated into the company’s energy system. The improved steam stability and energy efficiency provide a solid foundation for the enterprise’s future development. With enhanced production capacity and reliable energy support, the pharmaceutical company expects to achieve significant growth in the coming years.

Why Choose ZOZEN 4 Ton Boiler Solutions

Selecting a 4 ton boiler requires careful consideration of structural integrity, combustion performance, thermal efficiency, and long-term reliability. For enterprises operating in regulated industries such as pharmaceuticals, stable steam quality and consistent operation are particularly important.

The ZOZEN DZL series biomass 4 ton boiler integrates advanced design concepts, including the arched tube sheet and threaded smoke tube technology, to improve heat transfer and structural durability. The horizontal three-pass configuration maximizes heat utilization, while the chain grate combustion system ensures stable fuel feeding and efficient burnout. With thermal efficiency exceeding 86% under appropriate operating conditions, the DZL 4 ton boiler supports cost-effective biomass utilization.

In addition to technical advantages, ZOZEN emphasizes manufacturing precision and quality control. From material selection to welding and inspection procedures, each stage is carefully managed to ensure long-term operational safety. The compact structure of the 4 ton boiler simplifies installation and maintenance, making it suitable for both new installations and renovation projects.

For industrial enterprises seeking a reliable, efficient, and structurally sound 4 ton boiler, ZOZEN provides a well-engineered solution backed by technical innovation and practical project experience. By combining stable combustion, enhanced heat transfer performance, and durable structural design, the ZOZEN 4 ton boiler supports sustainable industrial growth and dependable steam supply for years to come.
