SZL Type Biomass Pellet Boiler Product Introduction

SZL type biomass pellet boiler is a double pot longitudinal chain grate boiler, biomass forming pellets as fuel, can also burn: straw, palm shells, rice husk, etc., fuel adaptability is wide. 4 tons of biomass boilers above the structure is mostly used, the boiler below 4 tons is recommended to use DZL series biomass boiler.According to the use is divided into biomass steam boiler, biomass hot water boiler, biomass thermal oil boiler.

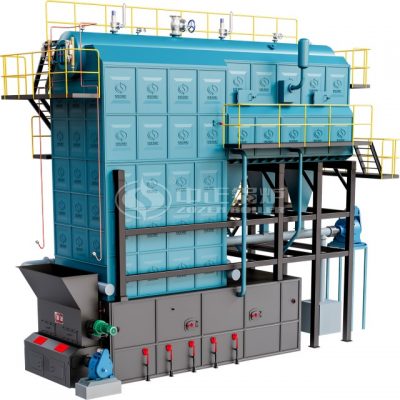

SZL Type Biomass Pellet Boiler

SZL Type Biomass Pellet Boiler


SZL Series Biomass Boiler Technical Parameters
Capacity: 4-35t/h
Working pressure: 1-2.5Mpa
Working temperature: 184-350 ℃
Boiler thermal efficiency: 88%
Applicable fuels: biomass forming pellets, wood chips, corn cobs, wood chips, etc. Application industries: chemical, food, pharmaceutical, packaging, textile, printing and dyeing, feed, medicine, building materials, brewing, heating, etc.

SZL series of biomass boiler product features

  1. Wide adaptability of fuel
  2. Can be applied to biomass forming pellets, wood chips, palm shells, straw and other fuels.

  3. sufficient power, thermal efficiency up to 88% or more
  4. Reasonable arrangement of furnace arch, furnace wall, furnace heating surface, and the use of independent air bin design to ensure that different biomass fuels can be burned out.

  5. NOx emission is lower than similar products
  6. Reasonable arrangement of primary air and secondary air, and the SZL biomass boiler tail is equipped with corresponding coal conservator and dust collector and other facilities, NOx emission concentration is as low as 200mg/m3.

  7. Stable operation for a long time can be guaranteed
  8. Choose the right material of high temperature resistant grate piece to improve the reliability of the grate and ensure safe boiler production.


SZL Type Biomass Pellet Boiler Product Introduction

SZL Type Biomass Pellet Boiler Product Introduction


SZL series biomass boiler price has two parts, one is the boiler body, the other is the boiler with auxiliary equipment. The boiler body is generally good to determine the price, the price of the boiler auxiliary engine according to the number of auxiliary engines and auxiliary engine material will vary greatly, of course, there are many factors that affect the price of the biomass boiler body, specifically the tonnage size, type, parameters required. In addition, the production process of biomass boilers from different manufacturers differs, and the price range of the boiler body also varies.
