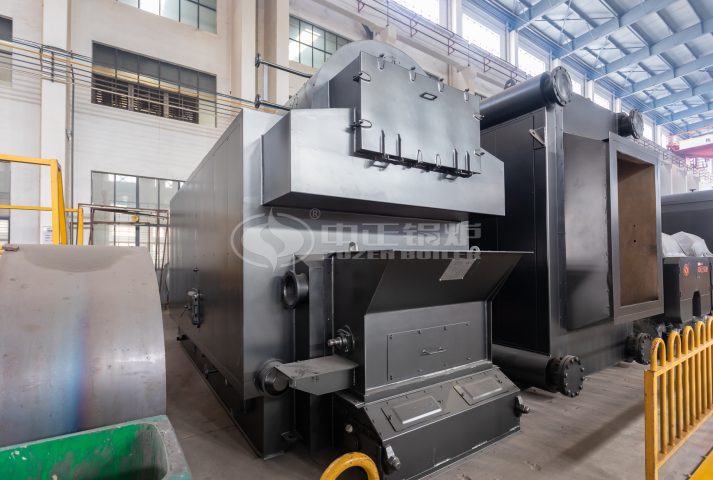

DZL Series Single Drum Steam Boiler

ZOZEN Single Drum Steam Boiler

Product thermal capacity: 2-10 t/h

Working pressure: 1-2.5 MPa

Available fuel: Bituminous coal,lean coal,anthracite

Available industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital

DZL Series Single Drum Steam Boiler Introduction

The DZL Series single drum steam boiler features a single-drum horizontal structure. Inside the drum, threaded fire tubes are arranged to form the convective heating surface, while the drum and the water-cooling walls on both sides constitute the furnace’s radiant heating surface. It adopts a chain grate combustion system, equipped with automated feeding equipment and an optimized air distribution design, ensuring complete combustion of the fuel.

DZL Series Single Drum Steam Boiler Features

High Thermal Efficiency: The DZL Series single drum steam boiler utilizes threaded smoke tubes and optimized heating surface arrangement, combined with advanced combustion technology. It achieves high thermal efficiency, significantly reducing fuel consumption and helping users save operating costs.

Strong Fuel Adaptability: The boiler supports a wide range of fuels, including bituminous coal and anthracite, meeting the diverse needs of various industries with greater flexibility and cost-effectiveness.

Excellent Environmental Performance: The boiler is equipped with advanced flue gas dust removal devices, effectively reducing smoke and harmful gas emissions. It complies with strict environmental standards, creating a greener production environment for users.

Easy Operation: With a chain grate automatic feeding system and intelligent control system, the boiler achieves fully automated operation. It is simple to operate, easy to maintain, and significantly reduces labor requirements, improving operational efficiency and safety.

DZL Series Single Drum Steam Boiler Specification

Model Rated steam capacity (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Thermal efficiency (%) Maximum transport dimension (m)
DZL2-1.25-AⅡ 2 1.25 194 >80 5.30×2.40×3.40
DZL2-1.6-AⅡ 2 1.6 204 >80 5.30×2.40×3.40
DZL2-2.5-AⅡ 2 2.5 225 >80 5.30×2.40×3.40
DZL4-1.25-AⅡ 4 1.25 194 >80 6.50×2.70×3.60
DZL4-1.6-AⅡ 4 1.6 204 >80 6.50×2.70×3.60
DZL4-2.5-AⅡ 4 2.5 225 >80 6.50×2.70×3.60
