A fluidized bed boiler represents a significant advancement in industrial steam generation technology, combining high combustion efficiency, fuel flexibility, and environmental compliance into a single system. Unlike conventional grate or pulverized coal boilers, a fluidized bed boiler suspends fuel particles in a high-velocity air stream, forming a fluidized state that promotes uniform combustion and maximizes heat transfer. This approach allows industries to burn a wide variety of fuels, including coal, biomass, and blended fuels, while reducing the formation of nitrogen oxides (NOx) and sulfur dioxide (SO2), thus meeting strict environmental regulations.

The adoption of fluidized bed boilers has grown rapidly in sectors such as pharmaceuticals, chemicals, food processing, and power generation, where continuous steam supply, precise temperature control, and efficient fuel utilization are essential. ZOZEN BOILER, with extensive experience in industrial boiler manufacturing, offers fluidized bed boilers that integrate advanced engineering, modular design, and robust operational reliability, ensuring consistent steam production tailored to the specific requirements of industrial applications.

DHX Circulating Fluidized Bed Coal-Fired Steam Boiler by ZOZEN

ZOZEN’s DHX series fluidized bed boiler employs circulating fluidized bed (CFB) technology, which significantly enhances combustion efficiency compared to conventional boiler designs. In the DHX boiler, fuel particles are suspended in an upward flow of air and continuously circulated between the furnace and cyclone separator, promoting complete combustion even at lower temperatures. This design feature minimizes NOx formation and allows in-bed desulfurization, effectively controlling SO2 emissions without additional flue gas treatment equipment.

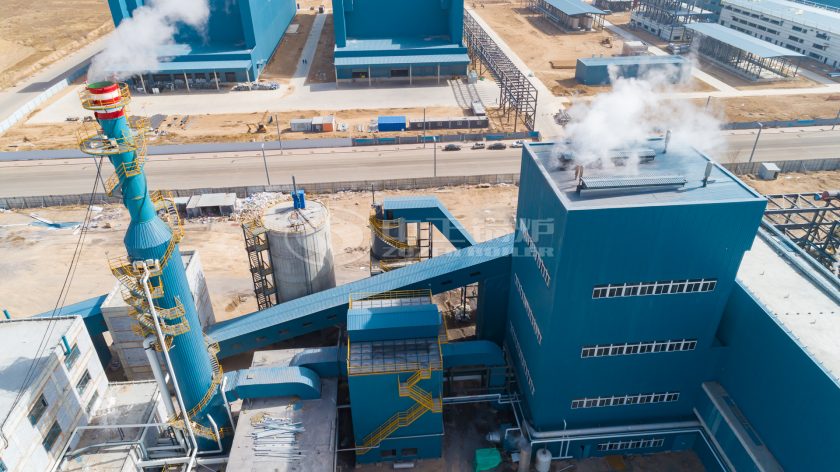

ZOZEN DHX series fluidized bed boiler

The DHX fluidized bed boiler features a precisely engineered air distribution system, ensuring uniform fluidization of the fuel bed and consistent heat transfer throughout the furnace. The furnace walls and bed structure are designed to resist thermal stress and erosion, allowing long-term operation under demanding industrial conditions. Furthermore, the boiler is equipped with economizers and heat recovery units, which capture residual heat from flue gases, improving overall thermal efficiency and reducing fuel consumption. With working pressures ranging from 1.25 to 2.5 MPa and capacities covering 15–40 t/h, the DHX series can meet the steam demand of diverse industrial processes while maintaining consistent operational stability.

Another key advantage of ZOZEN’s DHX fluidized bed boiler lies in its fuel flexibility. The boiler can efficiently combust coal, biomass pellets, wood chips, and mixed fuels, giving industrial operators the ability to optimize fuel costs and adapt to available local resources. The boiler’s modular assembly design simplifies transportation and on-site installation, reducing commissioning time and minimizing disruptions to production schedules. Additionally, advanced control systems allow operators to precisely adjust combustion air, fuel feed, and bed temperature, ensuring optimal steam quality for process applications that require stable pressure and temperature.

Case Study: Pharmaceutical Industry Application

In the pharmaceutical industry, a stable steam supply is critical not only for heating and sterilization but also for evaporation, distillation, and other temperature-sensitive processes. Traditional boiler technologies often face challenges such as high fuel consumption, uneven heat distribution, and elevated emissions, which can compromise production efficiency and environmental compliance.

A pharmaceutical company in China collaborated with ZOZEN BOILER to install a DHX series coal-fired fluidized bed boiler, designed specifically to meet the facility’s steam requirements while minimizing environmental impact. The DHX boiler’s low-temperature combustion significantly reduced nitrogen oxide emissions to approximately 100 mg/Nm³, ensuring compliance with national emission standards. Simultaneously, in-bed desulfurization achieved a sulfur removal efficiency of over 90%, eliminating the need for costly downstream flue gas treatment.

During continuous operation, the DHX fluidized bed boiler provided stable and high-quality steam, supporting multiple production lines without interruptions. Its high combustion efficiency, precise control of air and fuel distribution, and optimized heat transfer allowed the pharmaceutical plant to achieve both energy savings and operational reliability. The robust construction and durable materials of the DHX boiler minimized maintenance requirements and extended service life, while ZOZEN’s technical support team provided on-site guidance and training to ensure smooth startup and ongoing operation.

This project demonstrated that a well-designed fluidized bed boiler can simultaneously meet the strict operational, environmental, and economic requirements of highly regulated industries such as pharmaceuticals. By integrating advanced CFB technology with practical engineering solutions, ZOZEN provided a sustainable and reliable steam generation system that enhanced both production efficiency and environmental performance.

Advantages of ZOZEN Fluidized Bed Boiler

The DHX series fluidized bed boiler offers numerous advantages that distinguish it from traditional steam generation solutions. Firstly, the circulating fluidized bed design ensures uniform combustion of fuels, which maximizes thermal efficiency and reduces unburned carbon in the ash. Secondly, low-temperature combustion combined with in-bed desulfurization significantly reduces NOx and SO2 emissions, meeting stringent environmental regulations and supporting corporate sustainability initiatives.

Additionally, the boiler’s capacity to burn multiple types of solid fuels, including coal and various biomass materials, provides operational flexibility and cost advantages. Industrial operators can select fuel types based on availability and pricing, without compromising boiler performance. The sophisticated air distribution and control systems maintain precise steam pressure and temperature, supporting processes that require high-quality, consistent steam.

Economizers and heat recovery components further enhance energy efficiency by capturing residual heat from flue gases, thereby reducing fuel consumption. The modular and robust construction of the DHX fluidized bed boiler allows long-term operation with minimal maintenance, while the careful design of furnace walls, cyclone separators, and grates ensures resistance to erosion and thermal stress. Finally, ZOZEN’s comprehensive technical support, including installation guidance, operational training, and ongoing service, guarantees that clients receive a complete solution that is tailored to their production needs.

Conclusion

A ZOZEN DHX series fluidized bed boiler represents a highly efficient, environmentally friendly, and reliable solution for industrial steam applications. By integrating circulating fluidized bed technology, in-bed desulfurization, advanced economizers, and precise combustion control, the DHX boiler delivers stable, high-quality steam while minimizing fuel consumption and emissions. The pharmaceutical industry case demonstrates the system’s ability to meet demanding operational and environmental requirements, confirming that ZOZEN’s fluidized bed boilers provide both economic and ecological benefits.

For industries seeking a dependable and efficient steam generation system, ZOZEN BOILER’s DHX series fluidized bed boiler offers a proven solution that combines cutting-edge technology with practical engineering design. Its fuel flexibility, high efficiency, emission control, and operational reliability make it a preferred choice for industrial operators worldwide, ensuring that production processes remain uninterrupted while complying with modern environmental standards.
