In the intricate landscape of industrial steam generation, the boiler fire tube remains a cornerstone of reliable thermal energy systems for mid-scale operations. This classic design offers inherent advantages in simplicity, durability, and operational stability. Unlike water tube configurations, boiler fire tube systems excel in applications requiring consistent steam output at moderate pressures, making them indispensable across sectors such as chemical processing, food manufacturing, textile dyeing, and pharmaceutical production. Their compact footprint and straightforward maintenance protocols suit facilities with space constraints or limited technical resources, while modern iterations integrate advanced combustion controls to meet evolving environmental standards. As industries balance operational demands with sustainability imperatives, the boiler fire tube continues to demonstrate remarkable adaptability. Among innovators refining this proven technology, ZOZEN BOILER has distinguished itself through engineering precision and customer-centric innovation, transforming traditional fire tube principles into solutions for contemporary industrial challenges.

ZOZEN BOILER’s WNS Series: Redefining Fire Tube Excellence

ZOZEN BOILER’s WNS series oil/gas-fired steam boiler epitomizes the evolution of boiler fire tube technology, merging time-tested reliability with cutting-edge efficiency enhancements. This three-pass fire tube design features a corrugated furnace and optimized tube geometry to maximize heat transfer surface area while minimizing thermal stress. The combustion chamber’s scientifically engineered shape promotes complete fuel burnout, reducing unburned carbon residues and enhancing overall thermal performance. Crucially, the WNS series achieves thermal efficiency rates exceeding 98% through integrated innovations that transform conventional fire tube limitations into strategic advantages.

A defining feature is the boiler’s low-nitrogen oxide (NOx) combustion system, which utilizes staged air injection and flue gas recirculation to suppress thermal NOx formation at the source. This approach eliminates reliance on post-combustion scrubbers while ensuring compliance with global emission standards—critical for facilities in urban areas or regions with stringent air quality regulations. The system’s compatibility with diverse clean fuels, including natural gas, biogas, and liquefied petroleum gas, provides operational flexibility as energy landscapes evolve. For facilities transitioning from coal, the WNS boiler’s seamless fuel adaptability offers a pragmatic decarbonization pathway without infrastructure overhauls.

The boiler fire tube’s structural integrity is reinforced through meticulous material selection and fabrication techniques. ZOZEN’s proprietary welding protocols and stress-relieved drum construction prevent fatigue cracking during thermal cycling, extending service life in continuous-operation environments. Automated controls continuously monitor critical parameters—from steam pressure to flue gas composition—enabling real-time adjustments that maintain optimal combustion efficiency. This intelligence extends to safety systems, where redundant sensors and fail-safe mechanisms prevent operational hazards without compromising productivity. The result is a boiler fire tube system that delivers unwavering performance while reducing lifecycle costs through minimized maintenance and fuel consumption.

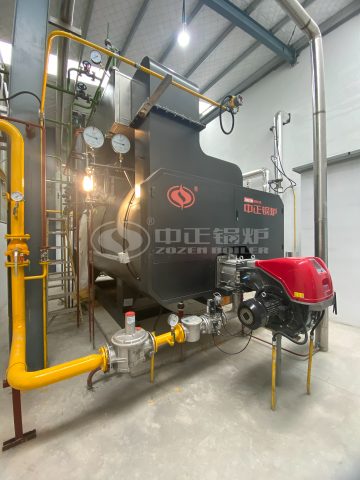

ZOZEN 6 ton WNS series fire tube boiler

Optimizing Chemical Production in China’s Heartland

Elementis Specialties Anji Ltd, a subsidiary of the London-listed Elementis Group, faced a critical thermal energy challenge at its organic bentonite manufacturing facility in Anji, Zhejiang Province. As global demand for their rheology additives surged, the plant’s existing steam infrastructure struggled to support expanded production of thickeners and anti-settling agents for coatings and inks. Space constraints compounded the issue—the compact boiler room left little room for conventional steam generation systems, while stringent local emission standards required ultra-low nitrogen oxide outputs. After evaluating multiple solutions, Elementis selected ZOZEN BOILER’s WNS series 6-ton steam boiler, recognizing its alignment with their spatial, operational, and environmental requirements.

ZOZEN Boiler’s engineering team addressed three core challenges inherent in chemical production environments:

– High thermal efficiency: WNS boiler adopts horizontal three-pass design, corrugated furnace + threaded smoke pipe to improve heat transfer efficiency, economizer and condenser to reduce exhaust gas temperature, making the system thermal efficiency>98%.

– Emission Compliance: Low-NOx burners and advanced low-NOx combustion technology are used to reduce NOx emissions to below 30 mg/Nm³, meeting environmental standards.

– Process Safety: Boiler IoT + remote control + expert management for fully automatic and safe operation. Advanced control systems reduce operation and maintenance costs and facilitate operation and maintenance.

This implementation has achieved revolutionary results. The boiler fire tube system achieved a thermal efficiency of 98% during operation, and natural gas consumption was reduced compared to Elementis’ previous boiler. The compact design enabled it to be installed in the existing boiler room without structural modifications, saving six weeks of construction time. Most importantly, the boiler’s reliability – running 24/7, achieving production growth while meeting Zhejiang Province’s stringent environmental reporting requirements. The project exemplifies how modern boiler fire tube technology can be expertly designed to solve complex industrial challenges through spatial intelligence and superior emissions performance.

The Enduring Relevance of Boiler Fire Tube Systems

The boiler fire tube transcends its mechanical function—it embodies a strategic commitment to operational resilience and environmental stewardship. ZOZEN BOILER’s WNS series demonstrates how thoughtful engineering can reconcile industrial energy demands with spatial and ecological constraints, turning thermal generation into a competitive advantage. From chemical plants in China’s manufacturing heartland to food processing facilities across Southeast Asia, these systems prove that tradition and innovation coexist synergistically.

As global industries navigate energy transitions, the boiler fire tube offers a pragmatic pathway forward. Its value extends beyond immediate efficiency gains to long-term adaptability—supporting fuel transitions, space optimization, and emission compliance without operational disruption. With ZOZEN BOILER as a technical partner, businesses gain more than equipment; they secure a collaborative relationship dedicated to continuous improvement, where every engineering refinement becomes a tangible asset in their operational ecosystem.

In the evolving narrative of industrial energy, the boiler fire tube represents a chapter where proven reliability meets progressive innovation. For forward-thinking manufacturers, selecting this technology isn’t merely an equipment choice—it’s an investment in enduring operational excellence, powered by engineering wisdom refined over generations. As Elementis’ experience illustrates, the right boiler fire tube solution transforms spatial constraints into opportunities, emission challenges into advantages, and thermal energy into a catalyst for sustainable growth.
