The hot water boiler has long been an essential component of modern industry and public infrastructure, providing a dependable source of thermal energy for a wide range of applications. Unlike steam boilers, which are primarily designed for process use in industrial manufacturing, the hot water boiler focuses on delivering stable and continuous heating. It plays a central role in sectors such as district heating, commercial complexes, schools, hospitals, and residential communities. In northern regions where winter temperatures remain low for extended periods, the hot water boiler is not only a piece of equipment but also a fundamental guarantee of daily comfort and well-being.

The hot water boiler is favored for its ability to deliver large volumes of water at controlled temperatures, ensuring reliable heating performance. Fuel flexibility is also a defining factor, as hot water boilers may operate on coal, oil, natural gas, or biomass. However, with increasing environmental pressures and stricter air quality standards, the transition to clean energy has accelerated the replacement of traditional coal-fired equipment with gas-fired alternatives. This shift highlights the importance of manufacturers that can supply high-performance, efficient, and environmentally responsible hot water boilers.

Among Chinese boiler manufacturers, ZOZEN Boiler has established a strong reputation in the field of hot water supply and heating projects. With advanced technologies, a comprehensive product range, and extensive project experience, ZOZEN continues to provide customized solutions tailored to diverse heating demands.

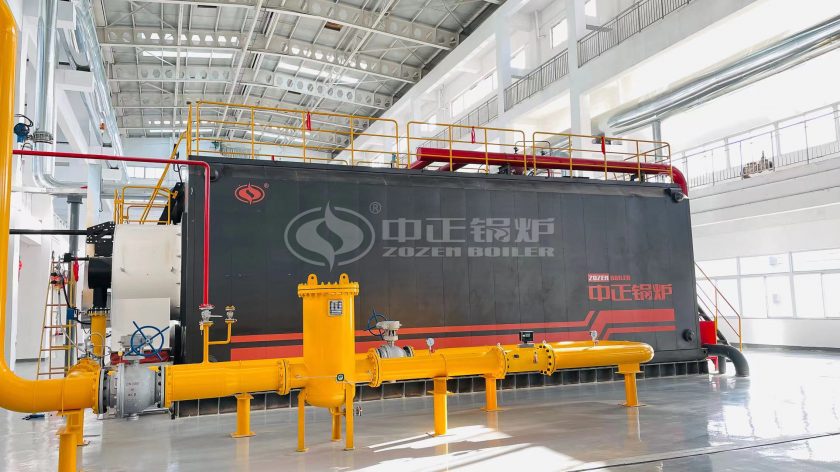

ZOZEN 58MW SZS gas/oil fired hot water boiler

Technical Features of the SZS Series Hot Water Boiler

At the forefront of ZOZEN’s offerings is the SZS series fuel and gas-fired hot water boiler, which has been designed to meet the demands of modern heating projects that require both large output and high efficiency. The SZS hot water boiler is constructed as a double-drum, D-type arrangement with full-membrane water-cooled walls, ensuring complete sealing and high thermal efficiency.

The combustion chamber adopts a spacious furnace design combined with narrow-pitch tube water-cooled walls, significantly reducing heat loss and ensuring uniform heat absorption. The large furnace volume promotes thorough combustion of fuel, which enhances overall efficiency while lowering harmful emissions. With advanced burner configurations, the hot water boiler is capable of achieving NOx emissions as low as 30mg/Nm³, meeting and often surpassing the most stringent environmental regulations.

From a performance perspective, the SZS hot water boiler can reach thermal efficiency levels above 98%. This is achieved through optimized heat transfer surfaces such as finned tube economizers and condensers that recover waste heat from flue gases, minimizing energy loss. For customers, this translates into lower fuel consumption, reduced operating costs, and improved sustainability.

In terms of pressure-bearing structure, the upper and lower drums of the SZS boiler are connected by a convection tube bundle, forming a robust convection heating surface. This arrangement allows for balanced thermal expansion in both directions, enhancing the boiler’s durability under continuous operation. The overall design also ensures safe operation at high working pressures and temperatures, making the hot water boiler suitable for both district heating and large-scale building complexes.

Automation and monitoring further elevate the reliability of the SZS series. Equipped with advanced control systems, the boiler can perform real-time monitoring of temperature, pressure, and water level, while interlocking safety mechanisms guarantee shutdown in case of abnormal conditions. For end-users, these features not only reduce risks but also improve ease of operation, even in high-demand heating seasons.

The combination of high efficiency, strong environmental performance, and robust safety design positions the SZS hot water boiler as a dependable choice for urban heating enterprises and industrial users alike.

Supporting Clean Heating with SZS Gas-Fired Hot Water Boilers

The transition toward clean energy heating has become a defining trend in northern regions, where winters can be long and severe. Reliable and stable heat supply is essential for public well-being, yet traditional coal-fired boilers have contributed significantly to air pollution. In response, policies promoting “coal-to-gas” conversions have been widely implemented, encouraging heating enterprises to adopt modern gas-fired solutions.

One such enterprise, a heating center dedicated to providing district heating services, made the decision to replace its aging coal-fired equipment with gas-fired alternatives in order to achieve its “green heating” objectives. After careful evaluation, the company selected ZOZEN Boiler as its partner, citing ZOZEN’s extensive experience in heating projects and proven technological strength.

The project involved the procurement of three units of SZS series gas-fired hot water boilers (SZS58-1.6/130/70-Q), each with a capacity of 58 MW. These boilers were specifically engineered for district heating, featuring a full-membrane wall structure and D-type configuration that ensured safe expansion and reliable long-term operation. The advanced furnace design supported complete combustion of natural gas, while integrated economizers improved efficiency and reduced energy loss.

With thermal efficiency exceeding 98% and NOx emissions controlled below 30mg/Nm³, the boilers not only delivered a stable heat source for thousands of residents but also met strict environmental targets. The successful implementation of this project illustrates how ZOZEN’s hot water boiler solutions support both community comfort and sustainable urban development.

The Future of Hot Water Boilers and ZOZEN’s Service Commitment

As heating demand continues to grow and environmental expectations become more stringent, the hot water boiler will remain a vital part of both industrial and residential infrastructure. The transition to cleaner fuels, greater efficiency, and safer operations will guide future development, requiring manufacturers to innovate and deliver solutions that meet these evolving requirements.

In this context, ZOZEN Boiler has consistently demonstrated its capability to provide advanced hot water boilers such as the SZS series. Combining high-efficiency designs, robust structural integrity, and low-emission combustion technologies, ZOZEN offers reliable solutions for heating enterprises and industrial users worldwide.

Beyond equipment, ZOZEN emphasizes comprehensive service. From project consultation and system design to installation, training, and long-term maintenance, the company ensures that every customer receives not only a product but also continuous technical support. For heating centers and industries seeking dependable solutions, ZOZEN’s approach reduces operational risks and extends the service life of their investment.

For enterprises considering the adoption or upgrade of a hot water boiler, ZOZEN Boiler provides a combination of proven technology, industry experience, and dependable service—making it a reliable partner in delivering both comfort and efficiency for years to come.
