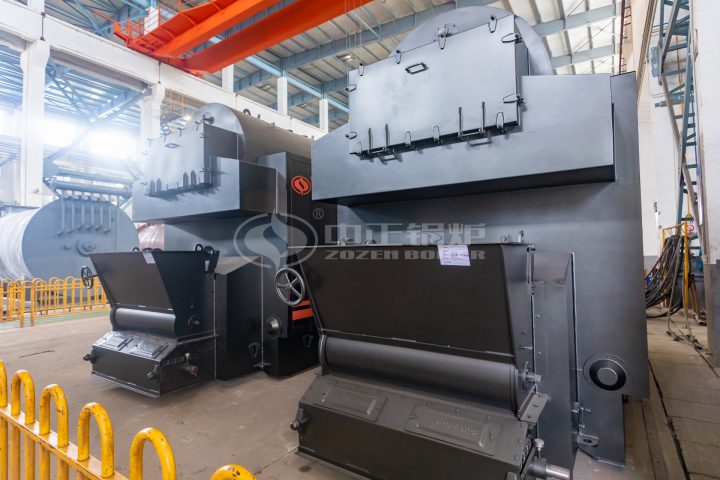

DZL Series Water and Fire Tube Boiler
Product thermal capacity: 2-10 t/h
Working pressure: 1-2.5 MPa
Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.
Available industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital.
DZL Series Water and Fire Tube Boiler Introduction
The DZL series water and fire tube boiler is a horizontal three-pass quick-install boiler powered by biomass. The boiler body is arranged in a horizontal single drum layout, with threaded smoke tubes inside the drum forming the convective heating surface, with a heat transfer coefficient 1.8 times higher than that of ordinary smoke tubes. The drum and the two side water walls form the furnace radiation heating surface. The combustion equipment adopts a light chain grate in an overall quick-installation form upon leaving the factory. The boiler is equipped with an independent high-pressure secondary air fan for air supply, with easily controllable and adjustable air volume and pressure.
DZL Series Water and Fire Tube Boiler Advantages
High Efficiency and Energy Saving: The DZL series water-fire tube boiler features an efficient combustion system that can fully burn fuel, improve thermal energy utilization, and achieve energy-saving effects.
Safety and Reliability: This series of boilers are designed reasonably, equipped with perfect safety protection devices, featuring high reliability, and ensuring safe and stable operation.
Environmentally Friendly and Energy Efficient: The DZL series water-fire tube boiler adopts advanced environmental protection technology, emits fewer pollutants, meets environmental requirements, and effectively reduces its impact on the environment.
Convenient Operation and Maintenance: The boiler has a simple structure, making operation and maintenance convenient. It has strong automation control functions, reducing the complexity of manual operations and improving operational efficiency.
DZL Series Water and Fire Tube Boiler Specification
| Model | Rated thermal power (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport dimension (m) |
| DZL2-1.25-SCⅢ | 2 | 1.25 | 194 | 5.30×2.40×3.40 |
| DZL2-1.6-SCⅢ | 2 | 1.6 | 204 | 5.30×2.40×3.40 |
| DZL2-2.5-SCⅢ | 2 | 2.5 | 225 | 5.30×2.40×3.40 |
| DZL4-1.25-SCⅢ | 4 | 1.25 | 194 | 6.50×2.70×3.60 |
| DZL4-1.6-SCⅢ | 4 | 1.6 | 204 | 6.50×2.70×3.60 |
| DZL4-2.5-SCⅢ | 4 | 2.5 | 225 | 6.50×2.70×3.60 |
