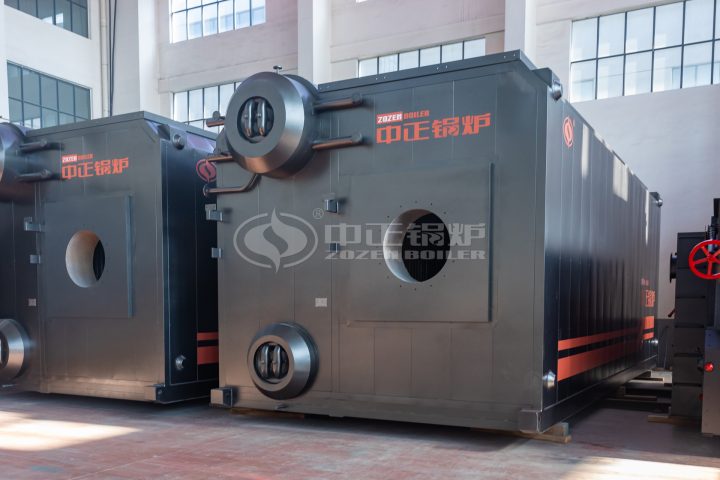

SZS Series D Type Water Tube Boiler
Product thermal capacity: 2-110 t/h
Working pressure: 1.25-5.3 MPa
Available fuel: Natural gas, coke oven gas, blast furnace gas, carbon black tail gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
SZS Series D Type Water Tube Boiler Introduction
The SZS series D type water tube boiler is a typical horizontal double-drum D-type layout boiler, primarily used for the combustion of oil and gas. This boiler features a fully membrane wall structure and operates on natural circulation. The body is fixed on the basement by middle and both end flexible supports and make the boiler to expand horizontally to sideways. Around furnace is membrane wall. Furnace and tube bundle is totally separated by the membrane wall at the left side of the furnace. The back part of bundle is sparse shift structure, front part is aligned structure. Smoke from furnace outlet enters re-burning chamber, bundle area, and then from left front part enters spiral fin coil economizer and condenser, finally discharged to atmosphere through chimney. The SZS series D type water tube boiler has a fully membrane wall structure, ensuring no air leakage, minimal exhaust heat loss, and high thermal efficiency. The boiler can be equipped with a flue gas condensation recovery device at the rear, effectively controlling exhaust gas temperature and improving thermal efficiency.
SZS Series D Type Water Tube Boiler Advantages
Efficient and Energy-saving: This series of boilers adopts a large furnace design, effectively improving thermal efficiency. Additionally, it is equipped with advanced combustion equipment and combustion control systems, enabling precise combustion control and minimizing energy waste, thus achieving energy-saving effects.
Safe and Reliable: The SZS series D type water tube boilers are equipped with a fully automatic control system, allowing precise control of water level, pressure, and temperature. This high level of automation makes operation more convenient while enhancing safety and reliability.
Flexible and Versatile: The SZS series boilers have a wide range of evaporation capacities and adaptability, allowing customization according to user needs and process characteristics. Moreover, this series of boilers can accommodate different fuel types, including natural gas, liquefied gas, heavy oil, etc., demonstrating high adaptability and flexibility.
Environmentally Friendly with Low Emissions: The series employs advanced combustion technology and flue gas circulation systems, effectively reducing emissions of nitrogen oxides and particulate matter generated during combustion. This ensures compliance with environmental standards and promotes environmental protection.
SZS Series D Type Water Tube Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| SZS2-2.5-Q(Y) | 2 | 2.5 | 225 | 20 | 4.75×2.65×2.91 |
| SZS4-2.5-Q(Y) | 4 | 2.5 | 225 | 25 | 6.25×2.96×3.11 |
| SZS6-1.25-Q(Y) | 6 | 1.25 | 194 | 26 | 6.85×3.36×3.38 |
| SZS6-1.6-Q(Y) | 6 | 1.6 | 204 | 26 | 6.85×3.36×3.38 |
| SZS6-2.5-Q(Y) | 6 | 2.5 | 225 | 26 | 6.85×3.36×3.38 |
| SZS10-1.25-Q(Y) | 10 | 1.25 | 194 | 36 | 7.95×3.65×3.65 |
| SZS10-1.6-Q(Y) | 10 | 1.6 | 204 | 36 | 7.95×3.65×3.65 |
| SZS10-2.5-Q(Y) | 10 | 2.5 | 225 | 36 | 7.95×3.65×3.65 |
| SZS15-1.25-Q(Y) | 15 | 1.25 | 194 | 40 | 8.80×3.76×3.65 |
| SZS15-1.6-Q(Y) | 15 | 1.6 | 204 | 40 | 8.80×3.76×3.65 |
| SZS15-2.5-Q(Y) | 15 | 2.5 | 225 | 40 | 8.80×3.76×3.65 |
| SZS20-1.25-Q(Y) | 20 | 1.25 | 194 | 48 | 8.80×3.96×3.90 |
| SZS20-1.6-Q(Y) | 20 | 1.6 | 204 | 48 | 8.80×3.96×3.90 |
| SZS20-2.5-Q(Y) | 20 | 2.5 | 225 | 48 | 8.80×3.96×3.90 |
| SZS25-1.25-Q(Y) | 25 | 1.25 | 194 | 52 | 9.60×3.96×3.90 |
| SZS25-1.6-Q(Y) | 25 | 1.6 | 204 | 52 | 9.60×3.96×3.90 |
| SZS25-2.5-Q(Y) | 25 | 2.5 | 225 | 52 | 9.60×3.96×3.90 |
| SZS30-1.25-Q(Y) | 30 | 1.25 | 194 | 57 | 10.70×4.40×4.20 |
| SZS30-1.6-Q(Y) | 30 | 1.6 | 204 | 57 | 10.70×4.40×4.20 |
| SZS30-2.5-Q(Y) | 30 | 2.5 | 225 | 57 | 10.70×4.40×4.20 |
| SZS35-1.25-Q(Y) | 35 | 1.25 | 194 | 62 | 11.5×4.40×4.20 |
| SZS35-1.6-Q(Y) | 35 | 1.6 | 204 | 62 | 11.5×4.40×4.20 |
| SZS35-2.5-Q(Y) | 35 | 2.5 | 225 | 62 | 11.5×4.40×4.20 |
| SZS40-1.25-Q(Y) | 40 | 1.25 | 194 | 67 | 11.7×4.40×4.20 |
| SZS40-1.6-Q(Y) | 40 | 1.6 | 204 | 67 | 11.7×4.40×4.20 |
| SZS40-2.5-Q(Y) | 40 | 2.5 | 225 | 67 | 11.7×4.40×4.20 |
| SZS50-1.25-Q(Y) | 50 | 1.25 | 194 | Assembled parts 48/72 | 12.32×3.25×4.06 |
| SZS50-1.6-Q(Y) | 50 | 1.6 | 204 | Assembled parts 48/72 | 12.32×3.25×4.06 |
| SZS50-2.5-Q(Y) | 50 | 2.5 | 225 | Assembled parts 48/72 | 12.32×3.25×4.06 |
| SZS65-1.25-Q(Y) | 65 | 1.25 | 194 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS65-1.6-Q(Y) | 65 | 1.6 | 204 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS65-2.5-Q(Y) | 65 | 2.5 | 225 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS75-1.25-Q(Y) | 75 | 1.25 | 194 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS75-1.6-Q(Y) | 75 | 1.6 | 204 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS75-2.5-Q(Y) | 75 | 2.5 | 225 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS100-1.25-Q(Y) | 100 | 1.25 | 194 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS100-1.6-Q(Y) | 100 | 1.6 | 204 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS100-2.5-Q(Y) | 100 | 2.5 | 225 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS110-1.25-Q(Y) | 110 | 1.25 | 194 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS110-1.6-Q(Y) | 110 | 1.6 | 204 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS110-2.5-Q(Y) | 110 | 2.5 | 225 | Bulk items 15 | 13.00×1.50×1.80 |
