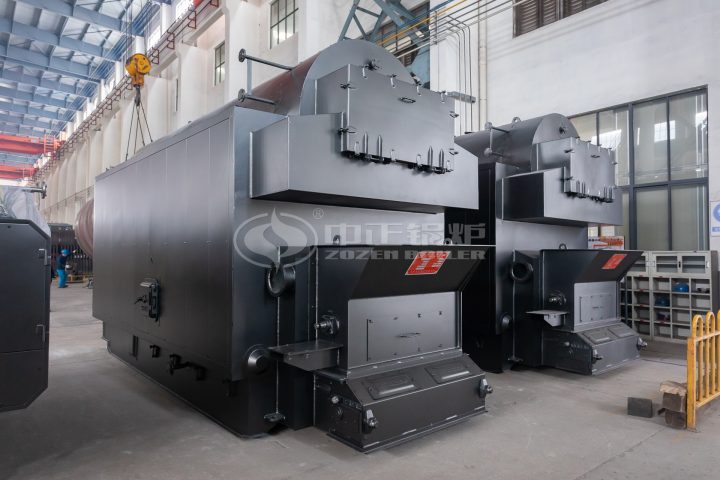

DZL Series Sawdust Fired Boiler

ZOZEN Sawdust Fired Boiler

Product thermal capacity: 2-10 t/h

Working pressure: 1-2.5 MPa

Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.

Available industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital.

DZL Series Sawdust Fired Boiler Introduction

The DZL series sawdust fired boiler uses sawdust as its primary fuel, making full use of renewable resources. This not only reduces fuel costs for enterprises but also aligns with energy-saving and environmental protection policies. The boiler adopts an advanced combustion system and is equipped with a high-efficiency chain grate to ensure complete combustion of sawdust. Its compact and well-designed structure, utilizing a fire-water tube configuration, delivers high heat transfer efficiency and is suitable for various working conditions.

DZL Series Sawdust Fired Boiler Advantages

High Efficiency and Energy Saving: The DZL series sawdust fired boiler features a scientifically arranged furnace arch, furnace walls, and heating surfaces. It also incorporates threaded smoke tubes as high-efficiency heat transfer elements, ensuring optimal thermal performance.

Ease of On-Site Installation: With its compact structure, the DZL series sawdust fired boiler is easy to install on-site, requires a short installation cycle, and reduces construction investment.

Strong Fuel Adaptability: In addition to sawdust, the boiler is compatible with other biomass fuels such as rice husks and wood pellets, meeting the diverse needs of various industries with enhanced flexibility and cost-effectiveness.

High Degree of Automation: Equipped with an advanced control system, the DZL series sawdust fired boiler simplifies fuel supply, ash discharge, and slag removal, ensuring easy operation and stable performance.

DZL Series Sawdust Fired Boiler Specification

Model Rated thermal power (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Maximum transport dimension (m)
DZL2-1.25-SCⅢ 2 1.25 194 5.30×2.40×3.40
DZL2-1.6-SCⅢ 2 1.6 204 5.30×2.40×3.40
DZL2-2.5-SCⅢ 2 2.5 225 5.30×2.40×3.40
DZL4-1.25-SCⅢ 4 1.25 194 6.50×2.70×3.60
DZL4-1.6-SCⅢ 4 1.6 204 6.50×2.70×3.60
DZL4-2.5-SCⅢ 4 2.5 225 6.50×2.70×3.60
