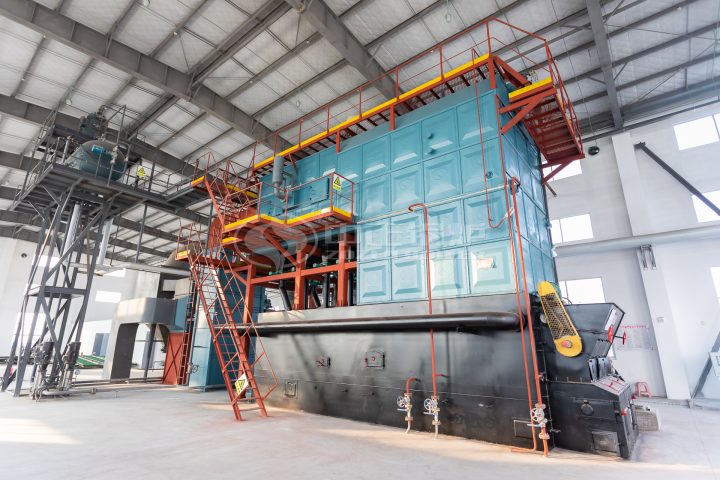

SZL Series Wood Chip Boiler for Sale

ZOZEN Wood Chip Boiler for Sale

Product thermal capacity: 6-35 t/h

Working pressure: 1-2.5 MPa

Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.

Available industries: Heating, chemical, food, tobacco, textile, print and dyeing, feed, medicine, building materials, wine, hospital

SZL Series Wood Chip Boiler for Sale Introduction

The SZL Series Wood Chip Boiler for Sale is a horizontal, dual-drum, chain grate, water tube steam boiler. he boiler consists of two major parts: the upper part is the heating surface and the lower part is the combustion equipment. The front of the boiler body is surrounded by water-cooled walls. The upper part is connected with drum and the lower part is connected with the header to form the combustion chamber, absorbing the radiation heat of the furnace. At the rear end, a convection tube bundle is arranged between the upper and lower drums. After the fuel is burned in the furnace, the high-temperature flue gas is swept across the convection tube bundle for the secondary return, then guided to a separately arranged economizer and finally enters the dust collector before being discharged through the chimney. Additionally, it is equipped with an extremely low water level electrode protection system to ensure the boiler’s water level safety during operation.

SZL Series Wood Chip Boiler for Sale Technical Features

Customized Feeding System: ZOZEN reasonably designs different feeding systems according to different biomass fuel characteristics, effectively improving the overall efficiency of the boiler.

High Temperature Grate: Biomass fuel has the characteristics of high volatile content and low ash content, after the combustion is completed, there is almost no ash and slag cover on the grate surface, and the grate is vulnerable to high temperature radiation, and the boiler chooses the appropriate high temperature grate material to adapt to the combustion characteristics of biomass fuel and greatly improve the reliability of the grate.

Reasonable Arrangement of Air: Under the condition of ensuring the optimal excess air amount in the furnace and the temperature of each combustion area, the oxygen demand of each stage of combustion is met, so that 70% of the volatiles generated by the drying and pyrolysis of biomass are completely burned, and the fixed carbon burnout is reduced and the generation of black smoke and flue gas pollutants is eliminated.

Customized Boiler System: According to the actual working conditions of users, equipped with economizer, cloth bag dust removal or electric dust removal and other environmental protection devices.

SZL Series Wood Chip Boiler for Sale Specification

Model Rated thermal power (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Maximum transport dimension (m)
SZL6-1.25-SCⅢ 6 1.25 194 6.20×2.80×3.65
7.20×2.60×2.80
SZL6-1.6-SCⅢ 6 1.6 204 6.20×2.80×3.65
7.20×2.60×2.80
SZL6-2.5-SCⅢ 6 2.5 225 6.20×2.80×3.65
7.20×2.60×2.80
SZL8-1.25-SCⅢ 8 1.25 194 7.10×3.52×3.65
7.80×3.10×2.80
SZL8-1.6-SCⅢ 8 1.6 204 7.10×3.52×3.65
7.80×3.10×2.80
SZL8-2.5-SCⅢ 8 2.5 225 7.10×3.52×3.65
7.80×3.10×2.80
SZL10-1.25-SCⅢ 10 1.25 194 7.90×3.52×3.65
8.40×3.10×2.80
SZL10-1.6-SCⅢ 10 1.6 204 7.90×3.52×3.65
8.40×3.10×2.80
SZL10-2.5-SCⅢ 10 2.5 225 7.90×3.52×3.65
8.40×3.10×2.80
SZL12-1.25-SCⅢ 12 1.25 194 8.80×3.52×3.65
8.40×3.10×2.80
SZL12-1.6-SCⅢ 12 1.6 204 8.80×3.52×3.65
8.40×3.10×2.80
SZL12-2.5-SCⅢ 12 2.5 225 8.80×3.52×3.65
8.40×3.10×2.80
SZL15-1.25-SCⅢ 15 1.25 194 9.60×3.20×3.65
8.30×3.30×3.00
SZL15-1.6-SCⅢ 15 1.6 204 9.60×3.20×3.65
8.30×3.30×3.00
SZL15-2.5-SCⅢ 15 2.5 225 9.60×3.20×3.65
8.30×3.30×3.00
SZL20-1.25-SCⅢ 20 1.25 194 10.65×3.28×3.60
9.30×3.81×2.80
SZL20-1.6-SCⅢ 20 1.6 204 10.65×3.28×3.60
9.30×3.81×2.80
SZL20-2.5-SCⅢ 20 2.5 225 10.65×3.28×3.60
9.30×3.81×2.80
SZL25-1.25-SCⅢ 25 1.25 194 11.65×3.80×3.60
9.30×3.81×3.00
SZL25-1.6-SCⅢ 25 1.6 204 11.65×3.80×3.60
9.30×3.81×3.00
SZL25-2.5-SCⅢ 25 2.5 225 11.65×3.80×3.60
9.30×3.81×3.00
SZL30-1.25-SCⅢ 30 1.25 194 10.00×3.36×3.60
SZL30-1.6-SCⅢ 30 1.6 204 10.00×3.36×3.60
SZL30-2.5-SCⅢ 30 2.5 225 10.00×3.36×3.60
SZL35-1.25-SCⅢ 35 1.25 194 10.00×3.65×3.85
SZL35-1.6-SCⅢ 35 1.6 204 10.00×3.65×3.85
SZL35-2.5-SCⅢ 35 2.5 225 10.00×3.65×3.85
