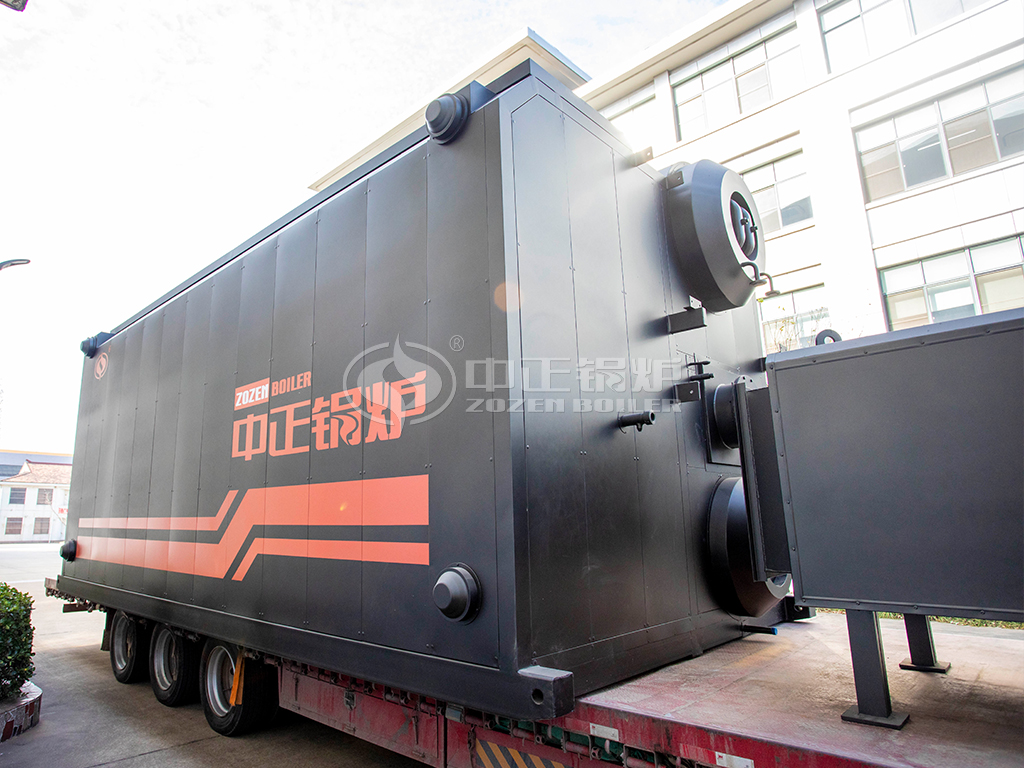

SZS Series D Type Boiler
Product thermal capacity: 2-110 t/h
Working pressure: 1.25-5.3 MPa
Available fuel: Natural gas, coke oven gas, blast furnace gas, carbon black tail gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
SZS Series D Type Boiler Introduction
The SZS series D type boiler is a dual-drum, horizontal, oil/gas steam boiler with the furnace on the right side and the convection tube bundle on the left side. The SZS series D type boiler features a full membrane water-cooled wall structure, micro-positive combustion, and a furnace enveloped by a membrane wall. The flue gas exits the furnace and enters the convection tube bundle connecting the upper and lower drums, then proceeds to the rear heating surface – the spiral finned economizer and condenser. Its design allows the boiler to expand towards both ends, with the lower drum fixed on the main body base through active supports at the middle and ends of the lower drum.
SZS Series D Type Boiler Advantages
Efficient Heat Transfer: The full membrane water-cooled wall structure of the SZS series D type boiler enhances heat transfer efficiency, ensuring optimal energy utilization and reducing heat loss.
Eco-Efficient: Low nitrogen burner and advanced low nitrogen combustion technology, NOx emission ≤30mg/Nm³
Advanced Combustion Technology: The utilization of micro-positive combustion technology in the SZS series D type boiler results in efficient and clean burning, contributing to lower emissions and environmental sustainability.
Sturdy Construction: The design of the SZS boiler allows for expansion towards both ends, providing stability and durability. Additionally, the use of active supports ensures secure positioning on the main body base, enhancing overall safety and reliability.
SZS Series D Type Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| SZS2-2.5-Q(Y) | 2 | 2.5 | 225 | 20 | 4.75×2.65×2.91 |
| SZS4-2.5-Q(Y) | 4 | 2.5 | 225 | 25 | 6.25×2.96×3.11 |
| SZS6-1.25-Q(Y) | 6 | 1.25 | 194 | 26 | 6.85×3.36×3.38 |
| SZS6-1.6-Q(Y) | 6 | 1.6 | 204 | 26 | 6.85×3.36×3.38 |
| SZS6-2.5-Q(Y) | 6 | 2.5 | 225 | 26 | 6.85×3.36×3.38 |
| SZS10-1.25-Q(Y) | 10 | 1.25 | 194 | 36 | 7.95×3.65×3.65 |
| SZS10-1.6-Q(Y) | 10 | 1.6 | 204 | 36 | 7.95×3.65×3.65 |
| SZS10-2.5-Q(Y) | 10 | 2.5 | 225 | 36 | 7.95×3.65×3.65 |
| SZS15-1.25-Q(Y) | 15 | 1.25 | 194 | 40 | 8.80×3.76×3.65 |
| SZS15-1.6-Q(Y) | 15 | 1.6 | 204 | 40 | 8.80×3.76×3.65 |
| SZS15-2.5-Q(Y) | 15 | 2.5 | 225 | 40 | 8.80×3.76×3.65 |
| SZS20-1.25-Q(Y) | 20 | 1.25 | 194 | 48 | 8.80×3.96×3.90 |
| SZS20-1.6-Q(Y) | 20 | 1.6 | 204 | 48 | 8.80×3.96×3.90 |
| SZS20-2.5-Q(Y) | 20 | 2.5 | 225 | 48 | 8.80×3.96×3.90 |
| SZS25-1.25-Q(Y) | 25 | 1.25 | 194 | 52 | 9.60×3.96×3.90 |
| SZS25-1.6-Q(Y) | 25 | 1.6 | 204 | 52 | 9.60×3.96×3.90 |
| SZS25-2.5-Q(Y) | 25 | 2.5 | 225 | 52 | 9.60×3.96×3.90 |
| SZS30-1.25-Q(Y) | 30 | 1.25 | 194 | 57 | 10.70×4.40×4.20 |
| SZS30-1.6-Q(Y) | 30 | 1.6 | 204 | 57 | 10.70×4.40×4.20 |
| SZS30-2.5-Q(Y) | 30 | 2.5 | 225 | 57 | 10.70×4.40×4.20 |
| SZS35-1.25-Q(Y) | 35 | 1.25 | 194 | 62 | 11.5×4.40×4.20 |
| SZS35-1.6-Q(Y) | 35 | 1.6 | 204 | 62 | 11.5×4.40×4.20 |
| SZS35-2.5-Q(Y) | 35 | 2.5 | 225 | 62 | 11.5×4.40×4.20 |
| SZS40-1.25-Q(Y) | 40 | 1.25 | 194 | 67 | 11.7×4.40×4.20 |
| SZS40-1.6-Q(Y) | 40 | 1.6 | 204 | 67 | 11.7×4.40×4.20 |
| SZS40-2.5-Q(Y) | 40 | 2.5 | 225 | 67 | 11.7×4.40×4.20 |
| SZS50-1.25-Q(Y) | 50 | 1.25 | 194 | Assembled parts 48/72 | 12.32×3.25×4.06 |
| SZS50-1.6-Q(Y) | 50 | 1.6 | 204 | Assembled parts 48/72 | 12.32×3.25×4.06 |
| SZS50-2.5-Q(Y) | 50 | 2.5 | 225 | Assembled parts 48/72 | 12.32×3.25×4.06 |
| SZS65-1.25-Q(Y) | 65 | 1.25 | 194 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS65-1.6-Q(Y) | 65 | 1.6 | 204 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS65-2.5-Q(Y) | 65 | 2.5 | 225 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS75-1.25-Q(Y) | 75 | 1.25 | 194 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS75-1.6-Q(Y) | 75 | 1.6 | 204 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS75-2.5-Q(Y) | 75 | 2.5 | 225 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS100-1.25-Q(Y) | 100 | 1.25 | 194 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS100-1.6-Q(Y) | 100 | 1.6 | 204 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS100-2.5-Q(Y) | 100 | 2.5 | 225 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS110-1.25-Q(Y) | 110 | 1.25 | 194 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS110-1.6-Q(Y) | 110 | 1.6 | 204 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS110-2.5-Q(Y) | 110 | 2.5 | 225 | Bulk items 15 | 13.00×1.50×1.80 |
