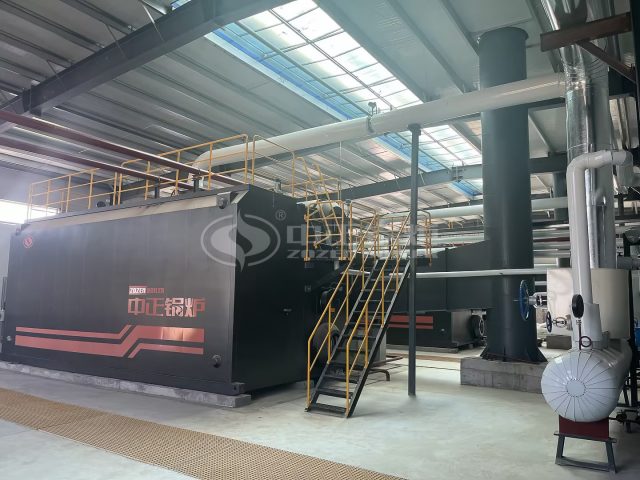

SZS series D Type Boilers

ZOZEN D Type Boilers

Product thermal capacity: 2-110 t/h

Working pressure: 1.25-5.3 MPa

Available fuel: Natural gas, coke oven gas, blast furnace gas, carbon black tail gas, biogas, diesel, heavy oil, light oil, crude oil, etc.

Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

SZS Series D Type Water Tube Boiler Introduction

The SZS series D type boilers feature a double-drum horizontal design, offering excellent structural rationality and thermal efficiency. The D-type layout results in a smaller footprint, making installation and maintenance convenient. The SZS series d type boilers utilize a full membrane water-cooled wall structure, ensuring both sealing and thermal efficiency. The combustion system is typically equipped with low-nitrogen burners, effectively reducing nitrogen oxide emissions and meeting environmental standards. The combustion chamber is spacious, allowing for complete fuel combustion, with thermal efficiency exceeding 98%. Additionally, SZS series D type boilers are equipped with advanced control systems that enable automated operation, ensuring safe and stable boiler performance. Users can easily monitor and adjust operational parameters through the human-machine interface.

SZS Series D Type Water Tube Boiler Advantages

High Efficiency: The SZS series D-type boilers feature a double-drum design, providing superior thermal efficiency and reducing energy consumption.

Environmental Protection: Equipped with advanced combustion technology, they significantly reduce exhaust emissions, meeting strict environmental standards.

Automated Control: Fitted with an intelligent control system, they achieve fully automated operation, reducing labor costs.

High Safety: Multiple safety protection devices ensure the safe operation of the boiler and reduce the risk of accidents.

SZS Series D Type Water Tube Boiler Specification

Model Rated steam capacity (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Maximum transport weight (t) Maximum transport dimension (m)
SZS2-2.5-Q(Y) 2 2.5 225 20 4.75×2.65×2.91
SZS4-2.5-Q(Y) 4 2.5 225 25 6.25×2.96×3.11
SZS6-1.25-Q(Y) 6 1.25 194 26 6.85×3.36×3.38
SZS6-1.6-Q(Y) 6 1.6 204 26 6.85×3.36×3.38
SZS6-2.5-Q(Y) 6 2.5 225 26 6.85×3.36×3.38
SZS10-1.25-Q(Y) 10 1.25 194 36 7.95×3.65×3.65
SZS10-1.6-Q(Y) 10 1.6 204 36 7.95×3.65×3.65
SZS10-2.5-Q(Y) 10 2.5 225 36 7.95×3.65×3.65
SZS15-1.25-Q(Y) 15 1.25 194 40 8.80×3.76×3.65
SZS15-1.6-Q(Y) 15 1.6 204 40 8.80×3.76×3.65
SZS15-2.5-Q(Y) 15 2.5 225 40 8.80×3.76×3.65
SZS20-1.25-Q(Y) 20 1.25 194 48 8.80×3.96×3.90
SZS20-1.6-Q(Y) 20 1.6 204 48 8.80×3.96×3.90
SZS20-2.5-Q(Y) 20 2.5 225 48 8.80×3.96×3.90
SZS25-1.25-Q(Y) 25 1.25 194 52 9.60×3.96×3.90
SZS25-1.6-Q(Y) 25 1.6 204 52 9.60×3.96×3.90
SZS25-2.5-Q(Y) 25 2.5 225 52 9.60×3.96×3.90
SZS30-1.25-Q(Y) 30 1.25 194 57 10.70×4.40×4.20
SZS30-1.6-Q(Y) 30 1.6 204 57 10.70×4.40×4.20
SZS30-2.5-Q(Y) 30 2.5 225 57 10.70×4.40×4.20
SZS35-1.25-Q(Y) 35 1.25 194 62 11.5×4.40×4.20
SZS35-1.6-Q(Y) 35 1.6 204 62 11.5×4.40×4.20
SZS35-2.5-Q(Y) 35 2.5 225 62 11.5×4.40×4.20
SZS40-1.25-Q(Y) 40 1.25 194 67 11.7×4.40×4.20
SZS40-1.6-Q(Y) 40 1.6 204 67 11.7×4.40×4.20
SZS40-2.5-Q(Y) 40 2.5 225 67 11.7×4.40×4.20
SZS50-1.25-Q(Y) 50 1.25 194 Assembled parts 48/72 12.32×3.25×4.06
SZS50-1.6-Q(Y) 50 1.6 204 Assembled parts 48/72 12.32×3.25×4.06
SZS50-2.5-Q(Y) 50 2.5 225 Assembled parts 48/72 12.32×3.25×4.06
SZS65-1.25-Q(Y) 65 1.25 194 Bulk items 14 12.00×1.50×1.80
SZS65-1.6-Q(Y) 65 1.6 204 Bulk items 14 12.00×1.50×1.80
SZS65-2.5-Q(Y) 65 2.5 225 Bulk items 14 12.00×1.50×1.80
SZS75-1.25-Q(Y) 75 1.25 194 Bulk items 14 12.00×1.50×1.80
SZS75-1.6-Q(Y) 75 1.6 204 Bulk items 14 12.00×1.50×1.80
SZS75-2.5-Q(Y) 75 2.5 225 Bulk items 14 12.00×1.50×1.80
SZS100-1.25-Q(Y) 100 1.25 194 Bulk items 15 13.00×1.50×1.80
SZS100-1.6-Q(Y) 100 1.6 204 Bulk items 15 13.00×1.50×1.80
SZS100-2.5-Q(Y) 100 2.5 225 Bulk items 15 13.00×1.50×1.80
SZS110-1.25-Q(Y) 110 1.25 194 Bulk items 15 13.00×1.50×1.80
SZS110-1.6-Q(Y) 110 1.6 204 Bulk items 15 13.00×1.50×1.80
SZS110-2.5-Q(Y) 110 2.5 225 Bulk items 15 13.00×1.50×1.80
