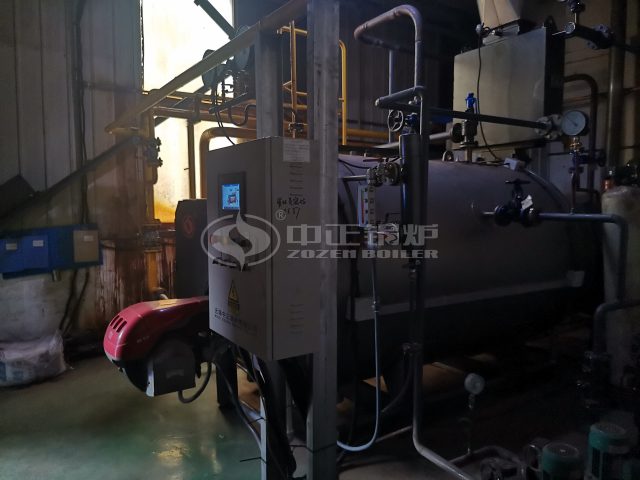

WNS Series Fire Tube Gas Boiler

ZOZEN Fire Tube Gas Boiler

Product thermal capacity: 1 – 20 t/h

Working pressure: 0.7-2 MPa

Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.

Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

WNS Series Fire Tube Gas Boiler Introduction

The WNS series fire tube gas boiler adopts a three-pass wet-back structure with a well-designed fire tube arrangement, maximizing heat energy utilization with thermal efficiency reaching over 98%, effectively reducing energy waste. The combustion system of the WNS series fire tube gas boiler is equipped with an imported low-NOx burner, significantly reducing nitrogen oxide emissions and meeting strict environmental standards. It also features an advanced automatic control system, supporting remote operation and monitoring, ensuring safety and ease of operation.

The WNS series fire tube gas boiler is designed with a compact structure, taking up minimal space, making installation and maintenance convenient. It is ideal for energy-saving retrofit projects across various industries. With its outstanding thermal efficiency and environmental performance, the WNS series fire tube gas boiler is an optimal choice for businesses aiming to achieve green production and reduce emissions.

WNS Series Fire Tube Gas Boiler Advantages

High efficiency and energy-saving: Thermal efficiency can reach over 98%, with high-quality insulation materials reducing heat loss.

Safe and reliable: Equipped with multiple safety protection devices, such as pressure control, over-temperature protection, and flame-out protection, ensuring safe operation.

Easy to operate: Fully automatic control system, easy to use, allowing for unattended operation.

Eco-friendly low emissions: Advanced combustion technology ensures low nitrogen oxide and other pollutant emissions, meeting international environmental standards.

WNS Series Fire Tube Gas Boiler Specification

Model Rated steam capacity (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Maximum transport weight (t) Maximum transport dimension (m)
WNS1-0.7-Q(Y) 1 0.7 170 4.5 3.25×1.80×2.00
WNS1-1.0-Q(Y) 1 1 184 4.5 3.25×1.80×2.00
WNS1.5-1.0-Q(Y) 1.5 1 184 7 3.65×2.05×2.45
WNS1.5-1.25-Q(Y) 1.5 1.25 194 7 3.65×2.05×2.45
WNS2-1.0-Q(Y) 2 1 184 9 4.60×2.20×2.60
WNS2-1.25-Q(Y) 2 1.25 194 9 4.60×2.20×2.60
WNS3-1.0-Q(Y) 3 1 184 11.5 5.35×2.40×2.80
WNS3-1.25-Q(Y) 3 1.25 194 11.5 5.35×2.40×2.80
WNS4-1.25-Q(Y) 4 1.25 194 15 5.00×2.60×2.95
WNS4-1.6-Q(Y) 4 1.6 204 15 5.00×2.60×2.95
WNS5-1.25-Q(Y) 5 1.25 194 18 5.55×2.658×3.20
WNS5-1.6-Q(Y) 5 1.6 204 18 5.55×2.658×3.20
WNS6-1.25-Q(Y) 6 1.25 194 19.5 5.93×2.80×3.20
WNS6-1.6-Q(Y) 6 1.6 204 19.5 5.93×2.80×3.20
WNS8-1.25-Q(Y) 8 1.25 194 25 7.00×2.80×3.25
WNS8-1.6-Q(Y) 8 1.6 204 25 7.00×2.80×3.25
WNS10-1.25-Q(Y) 10 1.25 194 27.5 7.65×2.80×3.25
WNS10-1.6-Q(Y) 10 1.6 204 27.5 7.65×2.80×3.25
WNS15-1.25-Q(Y) 15 1.25 194 40 7.95×3.50×3.75
WNS15-1.6-Q(Y) 15 1.6 204 40 7.95×3.50×3.75
WNS20-1.25-Q(Y) 20 1.25 194 52 8.55×3.90×4.15
WNS20-1.6-Q(Y) 20 1.6 204 52 8.55×3.90×4.15
