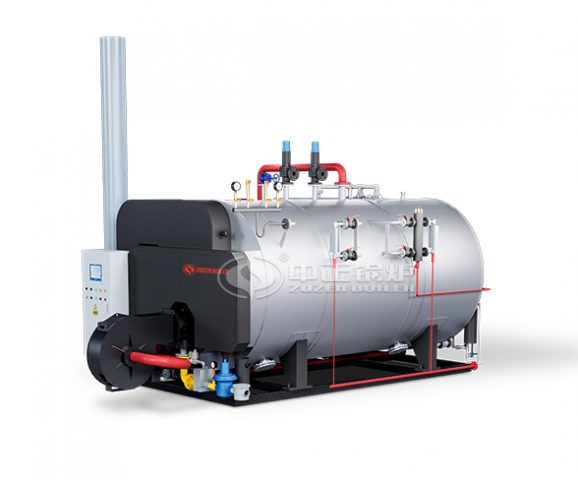

WNS Series Gas/Oil Fired Skid-mounted Steam Boiler

WNS Series Gas/Oil Fired Skid-mounted Steam Boiler

Product thermal capacity: 1-4 t/h

Working pressure: 1.0-1.6 MPa

Available fuel: Natural gas, biogas, coal gas, diesel oil, heavy oil, light oil, flue gases of petrochemical plants and industrial waste gas, etc.

Available industries: Chemical, food, cigarettes and tobacco, textile, building materials, hospital, heating etc.

WNS Series Gas/Oil Fired Skid-mounted Steam Boiler Introduction

  • ZOZEN Boiler’s skid mounted boiler adopts an integrated design, with all auxiliary machines and accessories integrated on a single skid frame, resulting in a compact structure, rational layout, and effectively reduced footprint.
  • No installation required, users only need to connect water, electricity, and gas, and it can be completed within one day, allowing for rapid deployment.
  • The unique design ensures that the entire set of equipment has good mobility and flexibility.
  • Customized professional burners merge the boiler control system with the burner control system, effectively enhancing the automation level of the boiler and further improving its energy-saving, environmental, and safety performance.

WNS Series Gas/Oil Fired Skid-mounted Steam Boiler Advantage

Installation free: Integrated design for quick on-site setup.

Rapid connection: Connect water, electricity, and gas for use within 1 day normally.

Compact design: Space-efficient with minimal footprint.

Flexible relocation: Easy to dismantle and reposition.

WNS Series Gas/Oil Fired Skid-mounted Steam Boiler Specification

Model Rated steam capacity (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Maximum transport dimension (m)(L×W×H)
WNS1-1.0-Q(Y) 1.0 1.0 184 5.00×2.25×2.50
WNS1-1.25-Q(Y) 1.0 1.25 194 5.00×2.25×2.50
WNS1.5-1.0-Q(Y) 1.5 1.0 184 4.50×2.25×2.50
WNS1.5-1.25-Q(Y) 1.5 1.25 194 4.50×2.25×2.50
WNS2-1.0-Q(Y) 2.0 1.0 184 7.50×2.25×2.50
WNS2-1.25-Q(Y) 2.0 1.25 194 7.50×2.25×2.50
WNS3-1.0-Q(Y) 3.0 1.0 184 8.50×2.25×2.50
WNS3-1.25-Q(Y) 3.0 1.25 194 8.50×2.25×2.50
WNS4-1.25-Q(Y) 4.0 1.25 194 10.50×2.25×2.50
WNS4-1.6-Q(Y) 4.0 1.6 204 10.50×2.25×2.50

Leave a Reply

Name *
Country
Email *
Tel
Boiler type:
Fuel:
Pressure :
Message:

Related Cases

ZOZEN 1 Tph Gas Fired Steam Boiler for Chemical Industry

Application Industry: Chemical Industry Project supporting boiler: 1 Ton Project boiler medium: ...

12Ton SZS Gas Boiler Used in The Tobacco Industry

Case name: 12Ton SZS Gas-Fired Steam Boiler Used in The Tobacco Industry Project type: supportin...

ZOZEN 6 Tph and 4 Tph Gas-Fired Steam Boilers For Beverage Industry

Application Industry: Beverage Industry Project supporting boiler: 6 tph, 4 tph Project boiler m...

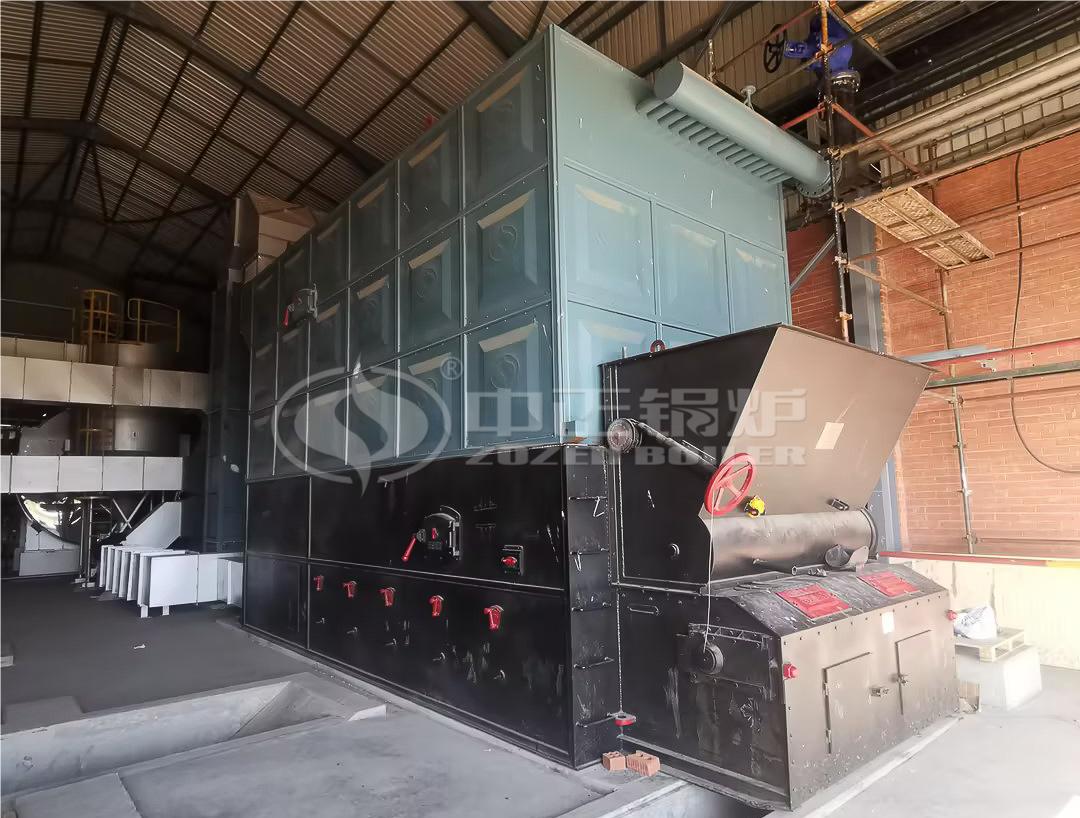

ZOZEN 6 Million Kcal Coal Fired Thermal Oil Heater for Chemical Industry in Indonesia
