In the intricate ecosystem of industrial energy systems, the 5 ton boiler occupies a critical niche where compact capacity meets substantial thermal output. Capable of generating five tons of saturated steam per hour, this capacity tier serves as the operational backbone for numerous small-to-medium enterprises requiring reliable process heat without excessive infrastructure demands. From chemical synthesis and pharmaceutical manufacturing to food processing and light industrial applications, the 5 ton boiler delivers the precise steam volumes necessary for consistent production cycles while maintaining spatial efficiency. Its versatility extends across sectors where energy density and operational flexibility are paramount, particularly in urban or retrofit environments where space constraints dictate equipment selection.

When regional fuel availability, spatial limitations, and evolving environmental regulations converge, ZOZEN BOILER’s engineering expertise transforms these challenges into opportunities for optimized performance. With decades of specialization in mid-scale thermal systems, ZOZEN delivers solutions that balance European engineering rigor with localized operational pragmatism—ensuring that every 5 ton boiler installation becomes a strategic asset rather than a mere utility. For facilities navigating energy transitions without compromising production continuity, the right 5 ton boiler selection represents a cornerstone of sustainable operational excellence.

ZOZEN’s Industrial Steam Portfolio: Where Fuel Flexibility Meets Engineering Excellence

The WNS series oil/gas-fired steam boiler exemplifies ZOZEN’s definitive approach to horizontal fire-tube design for mid-capacity applications. The three-pass thermal exchange process begins in the wave-shaped furnace (first pass), where flame radiation transfers heat to water walls. High-temperature flue gases then reverse through symmetrical tube bundles (second pass), with spirally corrugated flue tubes enhancing turbulence and heat absorption without increasing pressure drop. Finally, gases traverse an optimized third pass toward the economizer, recovering residual heat before chimney discharge. This 5 ton boiler innovation achieves thermal efficiency exceeding 98% through three interconnected features: a full-wet-back combustion chamber sealed with high-temperature gaskets preventing thermal stress cracks, corrugated furnace design extending heat absorption surfaces, and integrated economizers reducing exhaust temperatures. For facilities utilizing alternative fuels like hydrogen, the burner system undergoes specialized calibration to accommodate wider flammability ranges while maintaining complete combustion.

Complementing this is the DZL series single-drum biomass steam boiler, engineered specifically for heterogeneous feedstocks common in agricultural and forestry regions. This horizontal three-pass water-fire tube configuration features a longitudinal arrangement where the upper section forms the main heating surface and the lower section houses the chain grate combustion equipment. Water-cooled furnace walls surround the front of the main body, connecting to the steam drum above and headers below to create a robust radiation heating surface. The 5 ton boiler’s structural superiority manifests through the arched tube sheet design, which eliminates thermal stress concentration at the rear tube plate—a persistent failure point in conventional systems. Spirally corrugated flue tubes enhance turbulence within the convection section, increasing heat transfer surface area. The chain grate combustion system integrates a multi-zone air distribution mechanism where independent windboxes deliver precisely calibrated airflow along the grate length to match combustion phases.

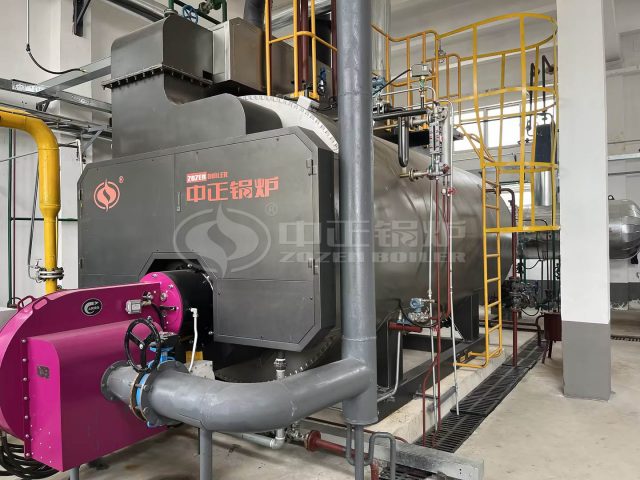

ZOZEN 5 ton WNS gas-fired steam boiler

Case Study: Maximizing Resource Efficiency in Chemical Manufacturing

A diversified chemical enterprise—operating across chemical production, thermal power generation, and building materials sectors—faced a critical resource optimization challenge. Their manufacturing processes generated significant hydrogen byproduct, traditionally vented or flared due to combustion complexities, while simultaneously requiring consistent high-quality steam for continuous production cycles. Conventional boilers struggled with hydrogen’s unique combustion characteristics, including wider flammability limits and higher flame temperatures, leading to unstable operation and safety concerns. After comprehensive evaluation of multiple thermal solutions, the company selected ZOZEN’s WNS series 5 ton boiler—a decision rooted in technical alignment with their operational reality.

The implementation addressed three core imperatives. First, ZOZEN’s engineering team configured the burner system specifically for hydrogen combustion, ensuring stable flame characteristics and complete fuel oxidation without flashback risks—a critical factor for continuous chemical processes where thermal interruptions disrupt sensitive reactions. Second, the full-wet-back structure eliminated thermal stress cracks that had plagued previous equipment during cyclic operations, extending service life in their 24/7 production environment. Third, the spirally corrugated flue tubes and wave-shaped furnace maximized heat transfer efficiency while accommodating the facility’s spatial constraints, enabling installation within existing utility rooms without structural modifications. ZOZEN’s regional compliance specialists ensured seamless integration with China’s TSG boiler regulations, while engineers conducted on-site commissioning with a focus on operator training tailored to chemical manufacturing rhythms. When initial hydrogen purity variations affected combustion dynamics, ZOZEN’s remote diagnostics team refined air-fuel ratios within 48 hours—avoiding production delays during critical commissioning phases.

Why 5 Ton Boiler Selection Defines Sustainable Operational Continuity

For industries navigating energy transitions, the 5 ton boiler represents far more than thermal equipment—it embodies a strategic alignment between resource optimization and production reliability. The WNS series’ corrosion-resistant alloys withstand thermal cycling during abrupt load changes, reducing unplanned downtime compared to conventional systems in facilities with frequent production shifts. For space-constrained workshops, the 5 ton boiler’s compact footprint—particularly the WNS series’ monobloc design—enables installation in retrofit environments without costly facility modifications, a critical factor where construction budgets are constrained. When evaluating 5 ton boiler options, discerning clients recognize that premium engineering prevents hidden costs: reduced fuel waste from sustained high efficiency, extended component lifespan through stress-mitigated design, and minimized downtime via predictive maintenance.

When your production process transforms byproducts into valuable energy streams, the right 5 ton boiler becomes more than thermal equipment—it embodies a strategic commitment to resource efficiency where every kilogram of steam generated reflects thoughtful engineering. In sectors where production continuity defines market leadership, ZOZEN transforms 5 ton boiler selection from a technical decision into a legacy of operational resilience. For facilities where thermal reliability is non-negotiable, the choice is clear: partner with an engineering leader who understands that true innovation resides in solving the problems others overlook. When your reputation depends on every reaction’s consistency, choose the 5 ton boiler engineered where it matters most—on the factory floor, within the regulatory framework, and aligned with your operational reality.
