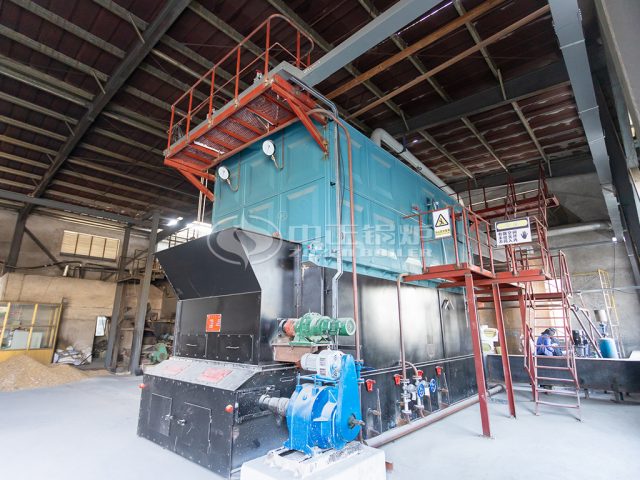

SZL Series 6 Ton Steam Boiler
Product thermal capacity: 6-35 t/h
Working pressure: 1-2.5 MPa
Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.
Available industries: Heating, chemical, food, tobacco, textile, print and dyeing, feed, medicine, building materials, wine, hospital
SZL Series 6 Ton Steam Boiler Introduction
The SZL series 6-ton steam boiler features a horizontal double-drum structure and a chain grate, showcasing high thermal efficiency and strong adaptability. This boiler comprises two main sections: the upper part for heat absorption and the lower part for combustion equipment. The SZL series 6 ton steam boiler employs a customized feeding system, allowing for the rational design of different feeding systems based on the characteristics of various biomass fuels, effectively enhancing the overall efficiency of the boiler.
SZL Series 6 Ton Steam Boiler Technical Features
High Efficiency and Energy Saving: The SZL series 6 ton steam boiler utilizes a densely arranged water-cooled wall tube structure, paired with a customized boiler system, boasting a large radiation area and achieving a thermal efficiency of over 86%.
Complete Fuel Combustion: Tailored independent air compartments corresponding to the boiler tonnage are adopted in the SZL series 6 ton steam boiler, enabling the adjustment of air distribution based on combustion conditions to ensure complete fuel combustion.
Automated Control: The advanced control system of the SZL series 6 ton steam boiler automates fuel supply, ash discharge, and slag discharge operations.
Dual Drums Design: With a unique dual drums design, the SZL series 6 ton steam boiler offers increased heating surface area, promoting better heat transfer efficiency and overall performance.
SZL Series 6 Ton Steam Boiler Specification
| Model | Rated thermal power (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport dimension (m) |
| SZL6-1.25-SCⅢ | 6 | 1.25 | 194 | 6.20×2.80×3.65 |
| 7.20×2.60×2.80 | ||||
| SZL6-1.6-SCⅢ | 6 | 1.6 | 204 | 6.20×2.80×3.65 |
| 7.20×2.60×2.80 | ||||
| SZL6-2.5-SCⅢ | 6 | 2.5 | 225 | 6.20×2.80×3.65 |
| 7.20×2.60×2.80 | ||||
| SZL8-1.25-SCⅢ | 8 | 1.25 | 194 | 7.10×3.52×3.65 |
| 7.80×3.10×2.80 | ||||
| SZL8-1.6-SCⅢ | 8 | 1.6 | 204 | 7.10×3.52×3.65 |
| 7.80×3.10×2.80 | ||||
| SZL8-2.5-SCⅢ | 8 | 2.5 | 225 | 7.10×3.52×3.65 |
| 7.80×3.10×2.80 | ||||
| SZL10-1.25-SCⅢ | 10 | 1.25 | 194 | 7.90×3.52×3.65 |
| 8.40×3.10×2.80 | ||||
| SZL10-1.6-SCⅢ | 10 | 1.6 | 204 | 7.90×3.52×3.65 |
| 8.40×3.10×2.80 | ||||
| SZL10-2.5-SCⅢ | 10 | 2.5 | 225 | 7.90×3.52×3.65 |
| 8.40×3.10×2.80 | ||||
| SZL12-1.25-SCⅢ | 12 | 1.25 | 194 | 8.80×3.52×3.65 |
| 8.40×3.10×2.80 | ||||
| SZL12-1.6-SCⅢ | 12 | 1.6 | 204 | 8.80×3.52×3.65 |
| 8.40×3.10×2.80 | ||||
| SZL12-2.5-SCⅢ | 12 | 2.5 | 225 | 8.80×3.52×3.65 |
| 8.40×3.10×2.80 | ||||
| SZL15-1.25-SCⅢ | 15 | 1.25 | 194 | 9.60×3.20×3.65 |
| 8.30×3.30×3.00 | ||||
| SZL15-1.6-SCⅢ | 15 | 1.6 | 204 | 9.60×3.20×3.65 |
| 8.30×3.30×3.00 | ||||
| SZL15-2.5-SCⅢ | 15 | 2.5 | 225 | 9.60×3.20×3.65 |
| 8.30×3.30×3.00 | ||||
| SZL20-1.25-SCⅢ | 20 | 1.25 | 194 | 10.65×3.28×3.60 |
| 9.30×3.81×2.80 | ||||
| SZL20-1.6-SCⅢ | 20 | 1.6 | 204 | 10.65×3.28×3.60 |
| 9.30×3.81×2.80 | ||||
| SZL20-2.5-SCⅢ | 20 | 2.5 | 225 | 10.65×3.28×3.60 |
| 9.30×3.81×2.80 | ||||
| SZL25-1.25-SCⅢ | 25 | 1.25 | 194 | 11.65×3.80×3.60 |
| 9.30×3.81×3.00 | ||||
| SZL25-1.6-SCⅢ | 25 | 1.6 | 204 | 11.65×3.80×3.60 |
| 9.30×3.81×3.00 | ||||
| SZL25-2.5-SCⅢ | 25 | 2.5 | 225 | 11.65×3.80×3.60 |
| 9.30×3.81×3.00 | ||||
| SZL30-1.25-SCⅢ | 30 | 1.25 | 194 | 10.00×3.36×3.60 |
| SZL30-1.6-SCⅢ | 30 | 1.6 | 204 | 10.00×3.36×3.60 |
| SZL30-2.5-SCⅢ | 30 | 2.5 | 225 | 10.00×3.36×3.60 |
| SZL35-1.25-SCⅢ | 35 | 1.25 | 194 | 10.00×3.65×3.85 |
| SZL35-1.6-SCⅢ | 35 | 1.6 | 204 | 10.00×3.65×3.85 |
| SZL35-2.5-SCⅢ | 35 | 2.5 | 225 | 10.00×3.65×3.85 |
