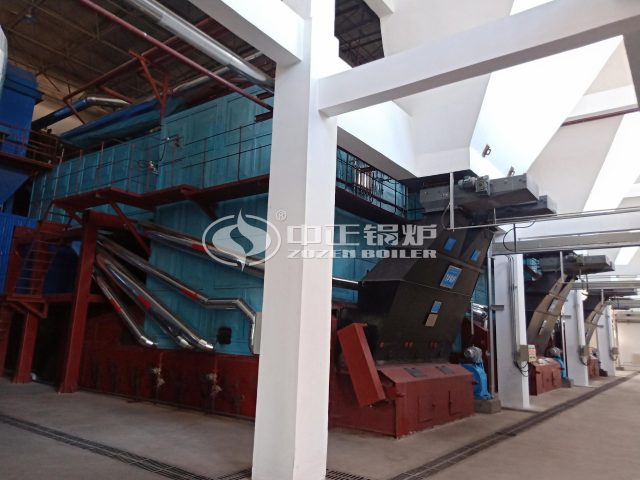

SZL Series Stoker Coal Steam Boiler

ZOZEN Stoker Coal Steam Boiler

Product thermal capacity: 6-35 t/h

Working pressure: 1-2.5 MPa

Available fuel: Bituminous coal, lean coal, anthracite

Available industries: Heating, chemical, food, tobacco, textile, print and dyeing, feed, medicine, building materials, wine, hospital

SZL Series Stoker Coal Steam Boiler Introduction

The SZL Series stoker coal steam boiler adopts a water tube structure, with a furnace featuring a densely arranged water-cooling wall tube design, combined with a customized boiler system, providing a large radiant area. The boiler is equipped with an advanced chain grate and independent wind chamber design, ensuring complete combustion of the fuel. The water-cooling walls and furnace walls of the SZL Series stoker coal steam boiler are made from high-quality steel, offering strong corrosion resistance and pressure resistance, which extends the boiler’s service life.

SZL Series Stoker Coal Steam Boiler Features

High Combustion Efficiency: The SZL Series stoker coal steam boiler uses a chain grate system to ensure that coal is fully combusted, significantly improving combustion efficiency, reducing fuel consumption, and helping users save operating costs.

Wide Fuel Adaptability: It can be used with various types of coal, including bituminous coal, lean coal, and anthracite etc.

High Automation: This series of boilers is equipped with automatic feeding and grate systems, simple to operate. The automated control system ensures stable boiler operation, reduces manual intervention, and enhances production efficiency and safety.

High Thermal Efficiency: The furnace adopts a densely arranged water-cooling wall tube structure, paired with a customized boiler system, providing a large radiation area.

SZL Series Stoker Coal Steam Boiler Specification

Model Rated steam capacity (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Maximum transport dimension (m)
SZL6-1.25-AⅡ 6 1.25 194 6.20×2.80×3.65
7.40×2.70×2.40
SZL6-1.6-AⅡ 6 1.6 204 6.20×2.80×3.65
7.40×2.70×2.40
SZL6-2.5-AⅡ 6 2.5 225 6.20×2.80×3.65
7.40×2.70×2.40
SZL8-1.25-AⅡ 8 1.25 194 7.80×3.25×3.61
8.25×3.10×2.80
SZL8-1.6-AⅡ 8 1.6 204 7.80×3.25×3.61
8.25×3.10×2.80
SZL8-2.5-AⅡ 8 2.5 225 7.80×3.25×3.61
8.25×3.10×2.80
SZL10-1.25-AⅡ 10 1.25 194 7.80×3.25×3.61
9.00×3.10×2.80
SZL10-1.6-AⅡ 10 1.6 204 7.80×3.25×3.61
9.00×3.10×2.80
SZL10-2.5-AⅡ 10 2.5 225 7.80×3.25×3.61
9.00×3.10×2.80
SZL12-1.25-AⅡ 12 1.25 194 8.80×3.52×3.65
8.40×3.10×2.80
SZL12-1.6-AⅡ 12 1.6 204 8.80×3.52×3.65
8.40×3.10×2.80
SZL12-2.5-AⅡ 12 2.5 225 8.80×3.52×3.65
8.40×3.10×2.80
SZL15-1.25-AⅡ 15 1.25 194 9.65×3.28×3.60
10.70×3.30×2.80
SZL15-1.6-AⅡ 15 1.6 204 9.65×3.28×3.60
10.70×3.30×2.80
SZL15-2.5-AⅡ 15 2.5 225 9.65×3.28×3.60
10.70×3.30×2.80
SZL20-1.25-AⅡ 20 1.25 194 10.65×3.28×3.60
10.30×3.81×2.80
SZL20-1.6-AⅡ 20 1.6 204 10.65×3.28×3.60
10.30×3.81×2.80
SZL20-2.5-AⅡ 20 2.5 225 10.65×3.28×3.60
10.30×3.81×2.80
SZL25-1.25-AⅡ 25 1.25 194 11.65×3.80×3.60
10.30×3.81×2.80
SZL25-1.6-AⅡ 25 1.6 204 11.65×3.80×3.60
10.30×3.81×2.80
SZL25-2.5-AⅡ 25 2.5 225 11.65×3.80×3.60
10.30×3.81×2.80
SZL30-1.25-AⅡ 30 1.25 194 10.00×3.36×3.60
SZL30-1.6-AⅡ 30 1.6 204 10.00×3.36×3.60
SZL30-2.5-AⅡ 30 2.5 225 10.00×3.36×3.60
SZL35-1.25-AⅡ 35 1.25 194 10.00×3.65×3.85
SZL35-1.6-AⅡ 35 1.6 204 10.00×3.65×3.85
SZL35-2.5-AⅡ 35 2.5 225 10.00×3.65×3.85
