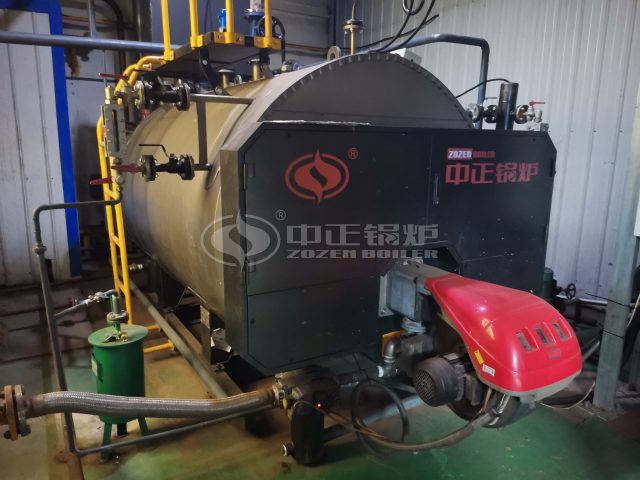

WNS Series Fire Tube Package Boiler
Product thermal capacity: 1 – 20 t/h
Working pressure: 0.7-2 MPa
Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
WNS Series Fire Tube Package Boiler Introduction
The WNS series fire tube package boiler features an advanced fire tube design that provides excellent heat exchange performance, enabling rapid production of steam. The core components of the WNS series fire tube package boiler are made from high-quality steel, ensuring durability and safety. This boiler supports a variety of fuel types, including natural gas, diesel, and heavy oil, to meet the diverse needs of different users. Additionally, the WNS series fire tube package boiler is equipped with an intelligent control system that can monitor the boiler’s operating status in real-time, ensuring efficient and stable operation. Moreover, its design complies with international standards, offering high thermal efficiency and low emissions, effectively reducing environmental pollution. In terms of maintenance, the compact structure of the WNS series fire tube package boiler facilitates easy inspection and servicing, lowering operational costs. With its outstanding performance and reliability, the WNS series fire tube package boiler has become the preferred choice for many enterprises, providing users with economical and environmentally friendly thermal solutions.
WNS Series Fire Tube Package Boiler Advantages
Compact Design: The WNS series boiler features a compact structure that saves space, making it suitable for various installation requirements.
High Safety: Equipped with multiple safety protection devices, such as overpressure protection and low-water protection, it ensures safe and reliable operation.
Convenient Maintenance: The design allows for easy inspection and maintenance, reducing maintenance costs and extending service life.
Energy-efficient and Environmentally Friendly: It offers excellent thermal efficiency, reducing energy consumption and supporting enterprises in achieving sustainable development goals.
WNS Series Fire Tube Package Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1 | 184 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1 | 184 | 7 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 7 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1 | 184 | 9 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 9 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1 | 184 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 15 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 15 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 18 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 18 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 25 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 25 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 40 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 40 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 52 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 52 | 8.55×3.90×4.15 |
