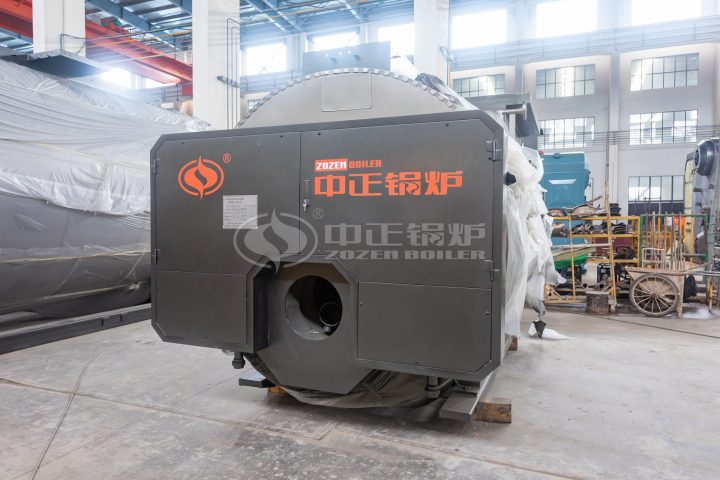

WNS Series Dual Fuel Steam Boiler

ZOZEN Dual Fuel Steam Boiler

Product thermal capacity: 1 – 20 t/h

Working pressure: 0.7-2 MPa

Available fuel: Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.

Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

WNS Series Dual Fuel Steam Boiler Introduction

The WNS series dual fuel steam boiler is a horizontal internal combustion three-pass full wet back boiler, featuring the flexibility to switch between gas and oil fuels, ensuring stable operation under varying fuel supply conditions. It adopts an integrated design that saves space while incorporating an efficient heat exchange system, allowing for rapid heating and effective steam generation. The WNS series is equipped with an automatic control system to optimize fuel consumption and emission control during operation, meeting international environmental standards. Additionally, it boasts excellent safety features, including multiple protection devices to ensure safe operation under various working conditions. Due to its outstanding performance and reliability, the WNS series dual fuel steam boiler is widely used in industries such as chemical, food, and pharmaceuticals, making it an ideal choice for users looking to enhance production efficiency and reduce operational costs. Through precision manufacturing and continuous technological innovation, ZOZEN is committed to providing high-quality products and superior service to customers.

WNS Series Dual Fuel Steam Boiler Advantages

Fuel Flexibility: The WNS series dual fuel steam boiler offers the advantage of fuel flexibility, allowing users to switch between gas and oil fuels easily based on availability and cost considerations.

Space-Saving Design: Its compact, integrated structure optimizes installation space while maintaining high efficiency.

Advanced Control System: Equipped with an automatic control system, it maximizes fuel efficiency and minimizes emissions, adhering to environmental standards.

Safety Features and Compliance: The WNS series dual fuel steam boiler is designed with multiple safety features and an automatic control system to ensure safe operation under various conditions, while also meeting international environmental standards, providing peace of mind to users regarding both safety and environmental impact.

WNS Series Dual Fuel Steam Boiler Specification

Model Rated steam capacity (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Maximum transport weight (t) Maximum transport dimension (m)
WNS1-0.7-Q(Y) 1 0.7 170 4.5 3.25×1.80×2.00
WNS1-1.0-Q(Y) 1 1 184 4.5 3.25×1.80×2.00
WNS1.5-1.0-Q(Y) 1.5 1 184 7 3.65×2.05×2.45
WNS1.5-1.25-Q(Y) 1.5 1.25 194 7 3.65×2.05×2.45
WNS2-1.0-Q(Y) 2 1 184 9 4.60×2.20×2.60
WNS2-1.25-Q(Y) 2 1.25 194 9 4.60×2.20×2.60
WNS3-1.0-Q(Y) 3 1 184 11.5 5.35×2.40×2.80
WNS3-1.25-Q(Y) 3 1.25 194 11.5 5.35×2.40×2.80
WNS4-1.25-Q(Y) 4 1.25 194 15 5.00×2.60×2.95
WNS4-1.6-Q(Y) 4 1.6 204 15 5.00×2.60×2.95
WNS5-1.25-Q(Y) 5 1.25 194 18 5.55×2.658×3.20
WNS5-1.6-Q(Y) 5 1.6 204 18 5.55×2.658×3.20
WNS6-1.25-Q(Y) 6 1.25 194 19.5 5.93×2.80×3.20
WNS6-1.6-Q(Y) 6 1.6 204 19.5 5.93×2.80×3.20
WNS8-1.25-Q(Y) 8 1.25 194 25 7.00×2.80×3.25
WNS8-1.6-Q(Y) 8 1.6 204 25 7.00×2.80×3.25
WNS10-1.25-Q(Y) 10 1.25 194 27.5 7.65×2.80×3.25
WNS10-1.6-Q(Y) 10 1.6 204 27.5 7.65×2.80×3.25
WNS15-1.25-Q(Y) 15 1.25 194 40 7.95×3.50×3.75
WNS15-1.6-Q(Y) 15 1.6 204 40 7.95×3.50×3.75
WNS20-1.25-Q(Y) 20 1.25 194 52 8.55×3.90×4.15
WNS20-1.6-Q(Y) 20 1.6 204 52 8.55×3.90×4.15
