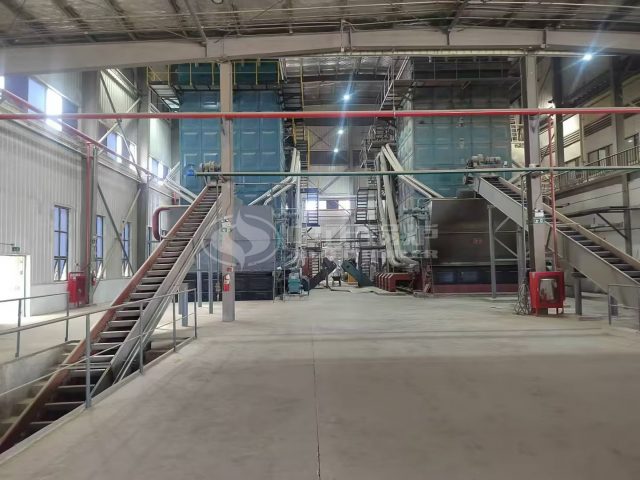

DZL Series Solid Fuel Heating Boiler
Product Thermal Capacity: 15-40 t/h
Working Pressure: 1.25 MPa / 1.6 MPa / 2.5 MPa
Available Fuel: Biomass pellets, rice husks, wood chips, palm shells, sawdust, etc.
Available Industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, pharmaceutical, building materials, brewing, rubber, hospitals.
DZL Series Solid Fuel Heating Boiler Introduction
The DZL series solid fuel heating boiler features a water tube structure that provides excellent heat exchange performance, ensuring rapid heating and efficient energy utilization. The DZL series solid fuel heating boiler is highly automated and easy to operate, equipped with an advanced automatic control system that enables intelligent adjustment and ensures stable boiler operation. Additionally, the unique combustion system design of the DZL series solid fuel heating boiler effectively reduces emissions, complying with national environmental protection standards. The DZL series solid fuel heating boiler offers various specifications to meet different customer needs, along with robust technical support and high-quality after-sales service, ensuring a worry-free experience for users.
DZL Series Solid Fuel Heating Boiler Advantages
Efficient Heat Exchange: The DZL series boiler uses a water tube structure with densely arranged water-cooled wall pipes in the furnace, combined with a customized boiler system that maximizes radiation area and fuel utilization.
Multiple Fuel Adaptability: The DZL series can utilize various solid fuels, such as coal, wood chips, and biomass, enhancing flexibility and cost-effectiveness to meet diverse user requirements.
Environmentally Friendly Design: Employing advanced combustion technology, it effectively reduces emissions and complies with national environmental standards, helping users meet regulatory requirements and minimize environmental impact.
Safety Protection System: The boiler is equipped with multiple safety protection mechanisms, including overpressure, overtemperature, and low water protection, ensuring safe operation under high loads and harsh conditions.
DZL Series Solid Fuel Heating Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Maximum transport dimension (m) |
| DZL15-1.25-SCⅢ | 15 | 1.25 | 194 | 104 | 10.10×3.15×3.60 8.50×3.42×3.00 |
| DZL15-1.6-SCⅢ | 15 | 1.6 | 204 | 104 | 10.10×3.15×3.60 8.50×3.42×3.00 |
| DZL15-2.5-SCⅢ | 15 | 2.5 | 225 | 104 | 10.10×3.15×3.60 8.50×3.42×3.00 |
| DZL20-1.25-SCⅢ | 20 | 1.25 | 194 | 104 | 10.70×3.90×3.60 9.30×3.81×3.00 |
| DZL20-1.6-SCⅢ | 20 | 1.6 | 204 | 104 | 10.70×3.90×3.60 9.30×3.81×3.00 |
| DZL20-2.5-SCⅢ | 20 | 2.5 | 225 | 104 | 10.70×3.90×3.60 9.30×3.81×3.00 |
| DZL25-1.25-SCⅢ | 25 | 1.25 | 194 | 104 | 10.70×3.90×3.60 9.30×3.81×3.00 |
| DZL25-1.6-SCⅢ | 25 | 1.6 | 204 | 104 | 10.70×3.90×3.60 9.30×3.81×3.00 |
| DZL25-2.5-SCⅢ | 25 | 2.5 | 225 | 104 | 10.70×3.90×3.60 9.30×3.81×3.00 |
| DZL30-1.25-SCⅢ | 30 | 1.25 | 194 | 104 | 10.00×3.36×3.60 |
| DZL30-1.6-SCⅢ | 30 | 1.6 | 204 | 104 | 10.00×3.36×3.60 |
| DZL30-2.5-SCⅢ | 30 | 2.5 | 225 | 104 | 10.00×3.36×3.60 |
| DZL35-1.25-SCⅢ | 35 | 1.25 | 194 | 104 | 10.00×4.10×3.80 |
| DZL35-1.6-SCⅢ | 35 | 1.6 | 204 | 104 | 10.00×4.10×3.80 |
| DZL35-2.5-SCⅢ | 35 | 2.5 | 225 | 104 | 10.00×4.10×3.80 |
| DZL40-1.25-SCⅢ | 40 | 1.25 | 194 | 104 | 10.00×4.44×4.30 |
| DZL40-1.6-SCⅢ | 40 | 1.6 | 204 | 104 | 10.00×4.44×4.30 |
| DZL40-2.5-SCⅢ | 40 | 2.5 | 225 | 104 | 10.00×4.44×4.30 |
