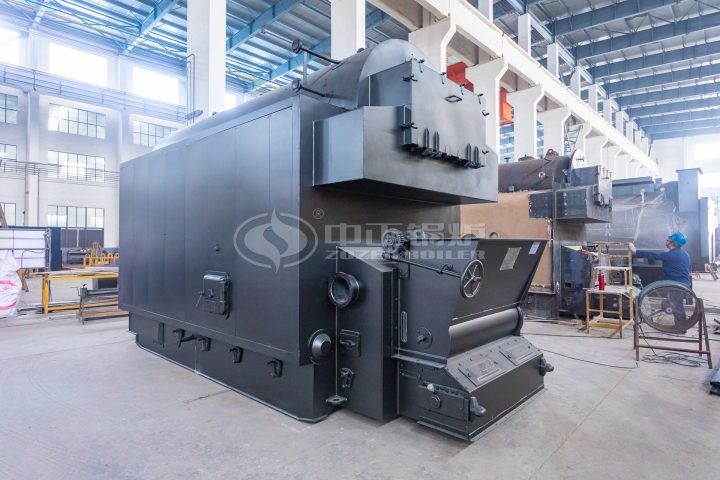

DZL Series Biomass Fired Boiler Application in Industry

ZOZEN Boiler Application in Industry

Product thermal capacity: 2-10 t/h

Working pressure: 1-2.5 MPa

Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.

Available industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital.

DZL Series Biomass Fired Boiler Application in Industry Introduction

As the demand for sustainable and renewable energy continues to increase, the application of the DZL series biomass fired boiler application in industry has become a popular choice. The DZL series biomass fired boiler application in industry is an efficient and environmentally friendly boiler that can utilize biomass fuels such as wood chips, sawdust, and straw to convert them into thermal energy. It features a chain grate and a quick-assembling water-fire tube structure, which contribute to its compact design and excellent combustion performance.

DZL Series Biomass Fired Boiler Application in Industry Advantages

High Efficiency: The DZL series biomass fired boiler application in industry adopts a special grate design and advanced combustion technology, ensuring the full combustion of biomass fuels and maximizing the thermal energy conversion efficiency. This enables the boiler to provide stable and efficient heat supply, reducing energy consumption and operating costs.

Environmental Friendliness: Biomass fuel is a renewable energy source that reduces reliance on traditional fuels. The use of the DZL series biomass fired boiler application in industry helps to reduce greenhouse gas emissions and minimize environmental impact.

Flexible and Diverse Fuel Adaptability: The DZL series biomass fired boiler application in industry is suitable for various biomass fuels, including wood chips, sawdust, straw, peanut shells, etc. This flexibility allows the boiler to adjust based on available fuel resources and provide continuous and stable heat supply.

Safety and Reliability: The DZL series biomass fired boiler application in industry is equipped with an advanced control system and multiple safety protection devices to ensure safe operation. Additionally, the boiler has a stable combustion process and reliable performance to meet the demand for stable heating in industrial production.

DZL Series Biomass Fired Boiler Application in Industry Specification

Model Rated thermal power (t/h) Rated working pressure (MPa) Rated steam temperature (℃) Maximum transport dimension (m)
DZL2-1.25-SCⅢ 2 1.25 194 5.30×2.40×3.40
DZL2-1.6-SCⅢ 2 1.6 204 5.30×2.40×3.40
DZL2-2.5-SCⅢ 2 2.5 225 5.30×2.40×3.40
DZL4-1.25-SCⅢ 4 1.25 194 6.50×2.70×3.60
DZL4-1.6-SCⅢ 4 1.6 204 6.50×2.70×3.60
DZL4-2.5-SCⅢ 4 2.5 225 6.50×2.70×3.60
