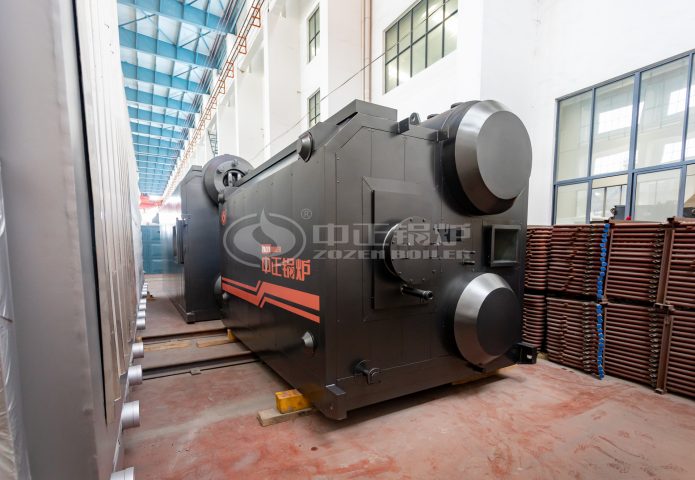

SZS Series Diesel Fuel Boiler
Product thermal capacity: 2-110 t/h
Working pressure: 1.25-5.3 MPa
Available fuel: Diesel, heavy oil, light oil, crude oil, etc.
Available industries: Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
SZS Series Diesel Fuel Boiler Introduction
The SZS series diesel fuel boiler is a double-drum, horizontal type, D-type arrangement with membrane water walls surrounding the furnace. This design increases the heat transfer area and improves the fuel’s heat absorption capacity. It helps lower the flue gas temperature and enhances the boiler’s thermal efficiency. The membrane water wall on the left side of the furnace completely seals off the furnace from the convection tube bundle. The rear part of the convection tube bundle features staggered rows for better turbulence, while the front part is arranged in a straight line. The flue gas generated in the furnace enters the ash and convection tube bundle area through the flue gas outlet at the rear of the furnace. It then turns towards the front of the boiler’s left side and enters the spiral finned tube economizer and condenser. Finally, the flue gas exits through the chimney, releasing into the atmosphere.
SZS Series Diesel Fuel Boiler Advantages
High efficiency and energy saving: The SZS series diesel boiler adopts advanced combustion technology and heat exchange technology, enabling the efficient utilization of fuel energy, improving energy efficiency, and reducing energy consumption costs.
Safety and reliability: The boiler is equipped with an automatic control system and comprehensive safety protection devices such as overheating protection and overpressure protection, ensuring stable and reliable boiler operation.
High-quality materials: The main components of the boiler are made of high-quality steel and high-temperature resistant materials, ensuring excellent corrosion resistance and high-temperature performance, guaranteeing long-term stable operation of the boiler.
Easy operation and maintenance: The well-designed structure and intelligent control system make the operation and maintenance of the boiler easier, reducing operating and maintenance costs.
Environmental protection and energy saving: The boiler has high combustion efficiency, meets emission standards, and complies with environmental requirements, effectively reducing its impact on the environment. It is a green and environmentally friendly energy equipment.
SZS Series Diesel Fuel Boiler Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| SZS2-2.5-Q(Y) | 2 | 2.5 | 225 | 20 | 4.75×2.65×2.91 |
| SZS4-2.5-Q(Y) | 4 | 2.5 | 225 | 25 | 6.25×2.96×3.11 |
| SZS6-1.25-Q(Y) | 6 | 1.25 | 194 | 26 | 6.85×3.36×3.38 |
| SZS6-1.6-Q(Y) | 6 | 1.6 | 204 | 26 | 6.85×3.36×3.38 |
| SZS6-2.5-Q(Y) | 6 | 2.5 | 225 | 26 | 6.85×3.36×3.38 |
| SZS10-1.25-Q(Y) | 10 | 1.25 | 194 | 36 | 7.95×3.65×3.65 |
| SZS10-1.6-Q(Y) | 10 | 1.6 | 204 | 36 | 7.95×3.65×3.65 |
| SZS10-2.5-Q(Y) | 10 | 2.5 | 225 | 36 | 7.95×3.65×3.65 |
| SZS15-1.25-Q(Y) | 15 | 1.25 | 194 | 40 | 8.80×3.76×3.65 |
| SZS15-1.6-Q(Y) | 15 | 1.6 | 204 | 40 | 8.80×3.76×3.65 |
| SZS15-2.5-Q(Y) | 15 | 2.5 | 225 | 40 | 8.80×3.76×3.65 |
| SZS20-1.25-Q(Y) | 20 | 1.25 | 194 | 48 | 8.80×3.96×3.90 |
| SZS20-1.6-Q(Y) | 20 | 1.6 | 204 | 48 | 8.80×3.96×3.90 |
| SZS20-2.5-Q(Y) | 20 | 2.5 | 225 | 48 | 8.80×3.96×3.90 |
| SZS25-1.25-Q(Y) | 25 | 1.25 | 194 | 52 | 9.60×3.96×3.90 |
| SZS25-1.6-Q(Y) | 25 | 1.6 | 204 | 52 | 9.60×3.96×3.90 |
| SZS25-2.5-Q(Y) | 25 | 2.5 | 225 | 52 | 9.60×3.96×3.90 |
| SZS30-1.25-Q(Y) | 30 | 1.25 | 194 | 57 | 10.70×4.40×4.20 |
| SZS30-1.6-Q(Y) | 30 | 1.6 | 204 | 57 | 10.70×4.40×4.20 |
| SZS30-2.5-Q(Y) | 30 | 2.5 | 225 | 57 | 10.70×4.40×4.20 |
| SZS35-1.25-Q(Y) | 35 | 1.25 | 194 | 62 | 11.5×4.40×4.20 |
| SZS35-1.6-Q(Y) | 35 | 1.6 | 204 | 62 | 11.5×4.40×4.20 |
| SZS35-2.5-Q(Y) | 35 | 2.5 | 225 | 62 | 11.5×4.40×4.20 |
| SZS40-1.25-Q(Y) | 40 | 1.25 | 194 | 67 | 11.7×4.40×4.20 |
| SZS40-1.6-Q(Y) | 40 | 1.6 | 204 | 67 | 11.7×4.40×4.20 |
| SZS40-2.5-Q(Y) | 40 | 2.5 | 225 | 67 | 11.7×4.40×4.20 |
| SZS50-1.25-Q(Y) | 50 | 1.25 | 194 | Assembled parts 48/72 | 12.32×3.25×4.06 |
| SZS50-1.6-Q(Y) | 50 | 1.6 | 204 | Assembled parts 48/72 | 12.32×3.25×4.06 |
| SZS50-2.5-Q(Y) | 50 | 2.5 | 225 | Assembled parts 48/72 | 12.32×3.25×4.06 |
| SZS65-1.25-Q(Y) | 65 | 1.25 | 194 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS65-1.6-Q(Y) | 65 | 1.6 | 204 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS65-2.5-Q(Y) | 65 | 2.5 | 225 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS75-1.25-Q(Y) | 75 | 1.25 | 194 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS75-1.6-Q(Y) | 75 | 1.6 | 204 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS75-2.5-Q(Y) | 75 | 2.5 | 225 | Bulk items 14 | 12.00×1.50×1.80 |
| SZS100-1.25-Q(Y) | 100 | 1.25 | 194 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS100-1.6-Q(Y) | 100 | 1.6 | 204 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS100-2.5-Q(Y) | 100 | 2.5 | 225 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS110-1.25-Q(Y) | 110 | 1.25 | 194 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS110-1.6-Q(Y) | 110 | 1.6 | 204 | Bulk items 15 | 13.00×1.50×1.80 |
| SZS110-2.5-Q(Y) | 110 | 2.5 | 225 | Bulk items 15 | 13.00×1.50×1.80 |
